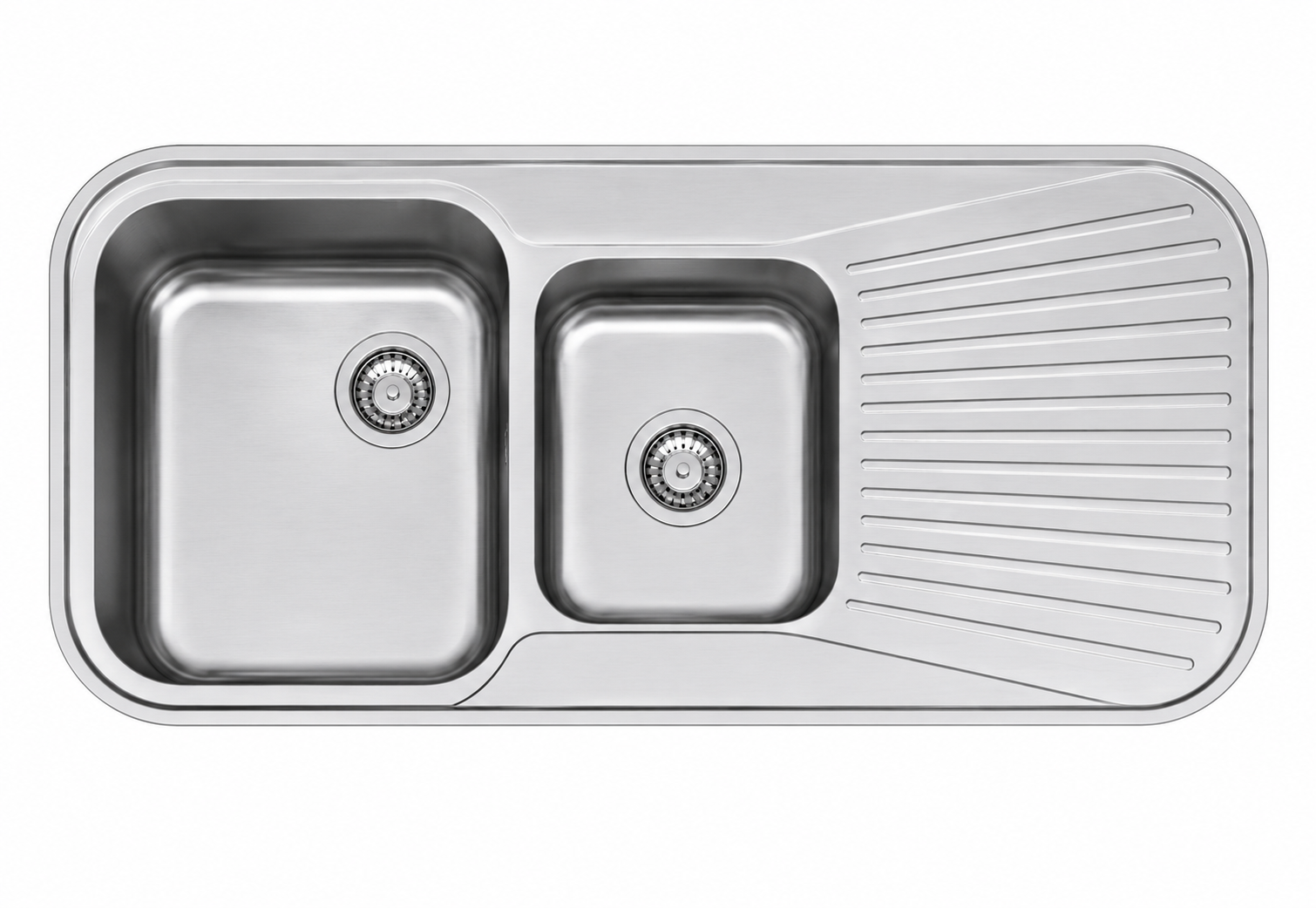

1.5 BOWL 1-DRAINER Model : 125802

Model : 125802
Installation Type : Inset
Dimension : 1200x500MM
Cut out size :1184x484MM
Bowl 1 Dimension : 410X410X235MM
Bowl 2 Dimension : 288x306x175MM
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.8MM
Surface : Bright Polished
Other : Tap/No Tap Hole, Overflow Hole

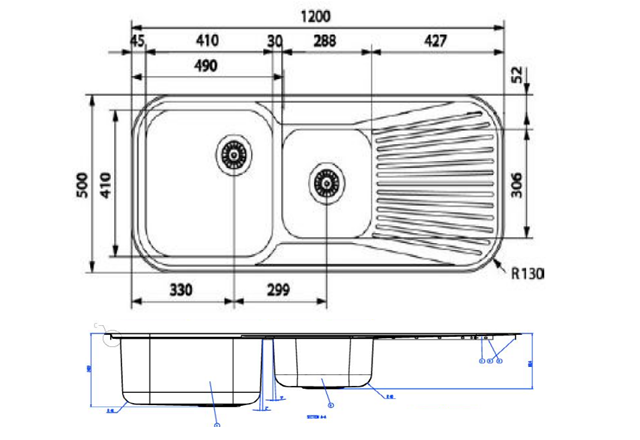

DRAWING
