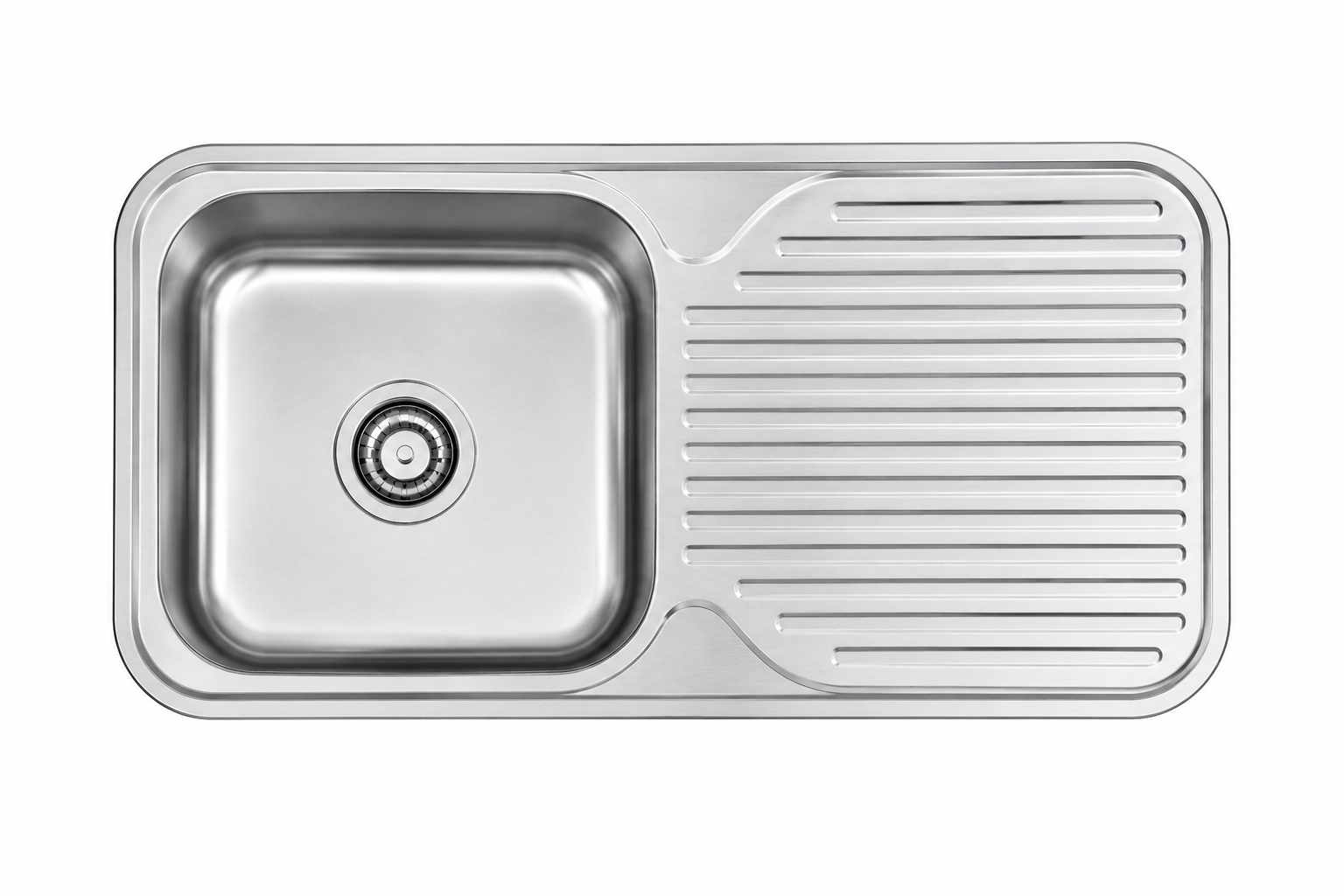

1 BOWL -1 DRAINER Model : 4020

Model : 4020
Installation Type : Inset
Dimension : 960x420x186MM
Cut out size : 944x404MM
Bowl 1 Dimension : 410X330x186MM
Bowl 2 Dimension : –
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.7MM
Surface : Bright Polished
Other : Tap/No Tap Hole, Overflow Hole



DRAWING
