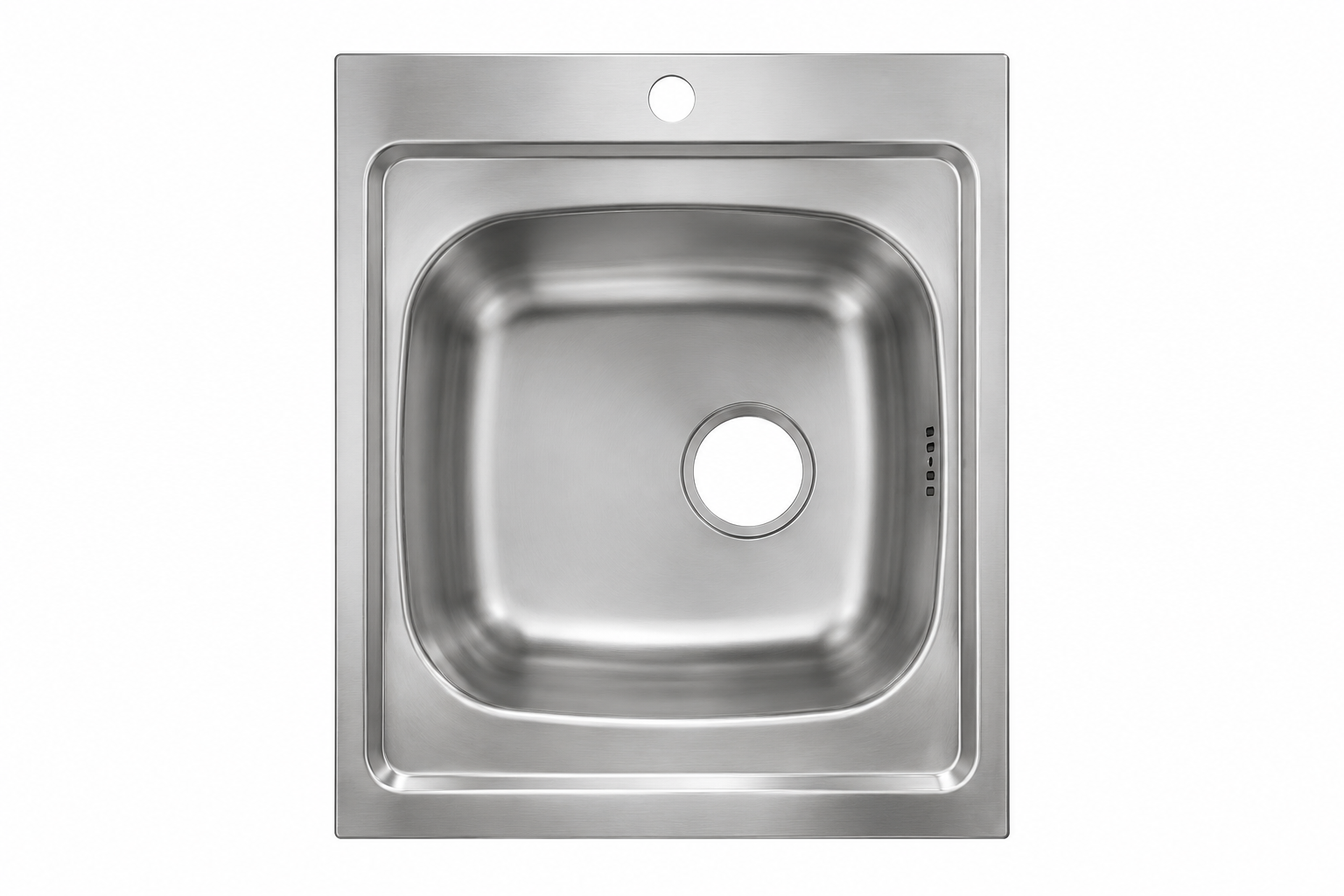

Model : C50
Installation Type : Inset
Dimension : 480x490x160-180MM
Cut out size : 464x474MM
Bowl 1 Dimension : 322x405x160-180MM
Bowl 2 Dimension : –
Waste Outlet : 90MM/98MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap hole/No Tap Hole

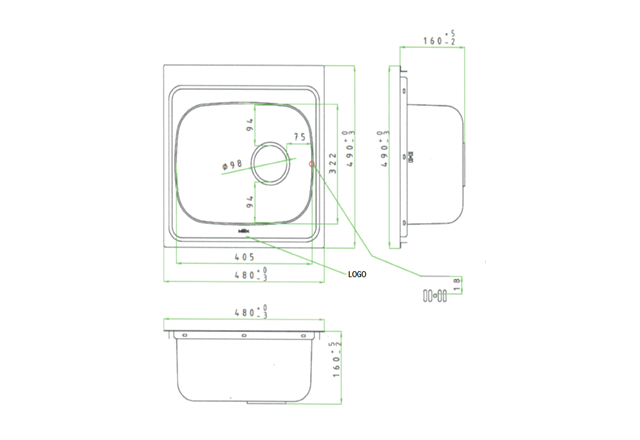

DRAWING
