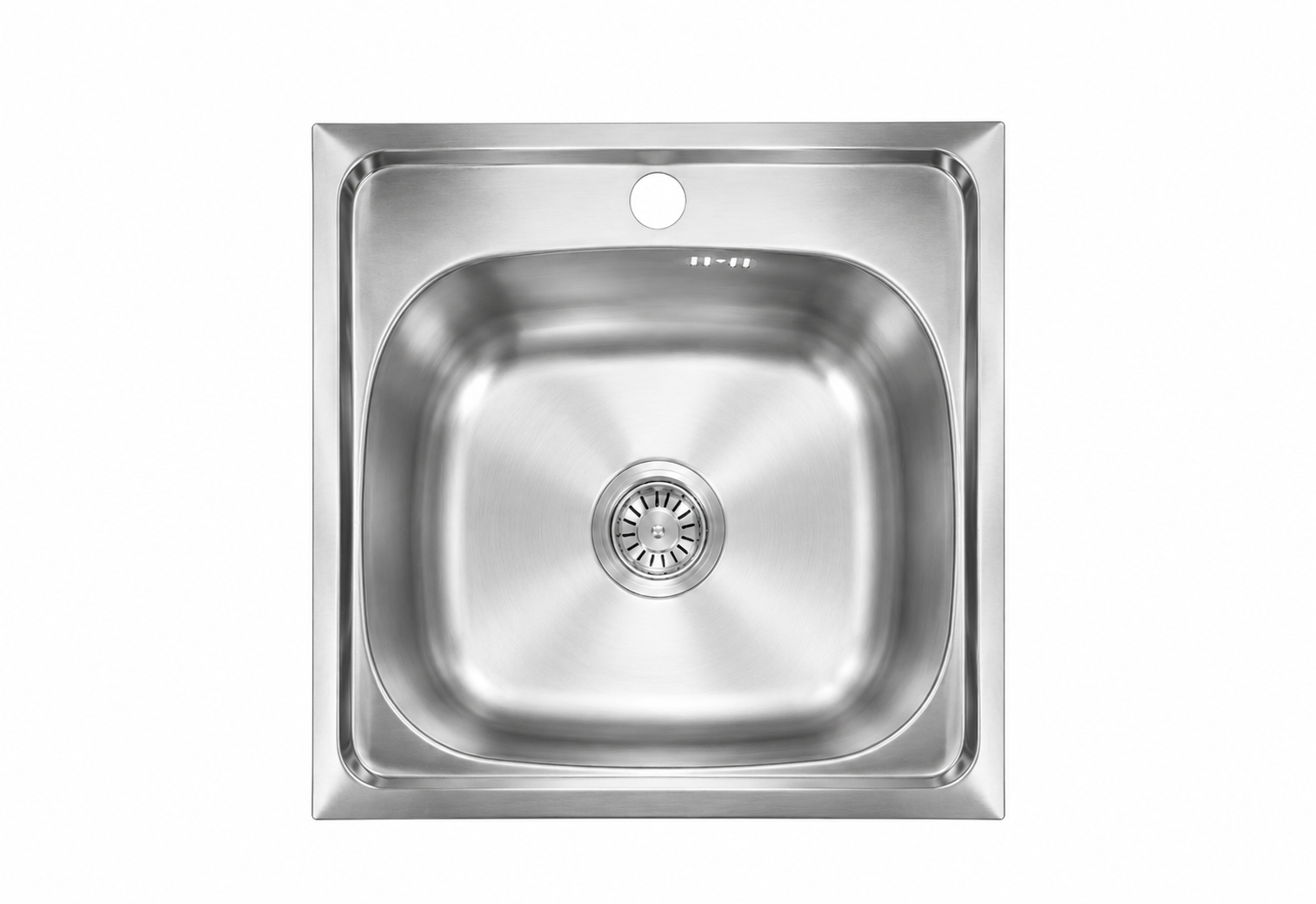

1 BOWL INSET/LAYON Model : DOX610 REV

Model : DOX610 REV
Installation Type : Inset
Dimension : 470x450x160-180MM
Cut out size : 454x434MM
Bowl 1 Dimension : 405x340x160-180MM
Bowl 2 Dimension : –
Waste Outlet : 50/90/97/98/110MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

DRAWING (SINK)
