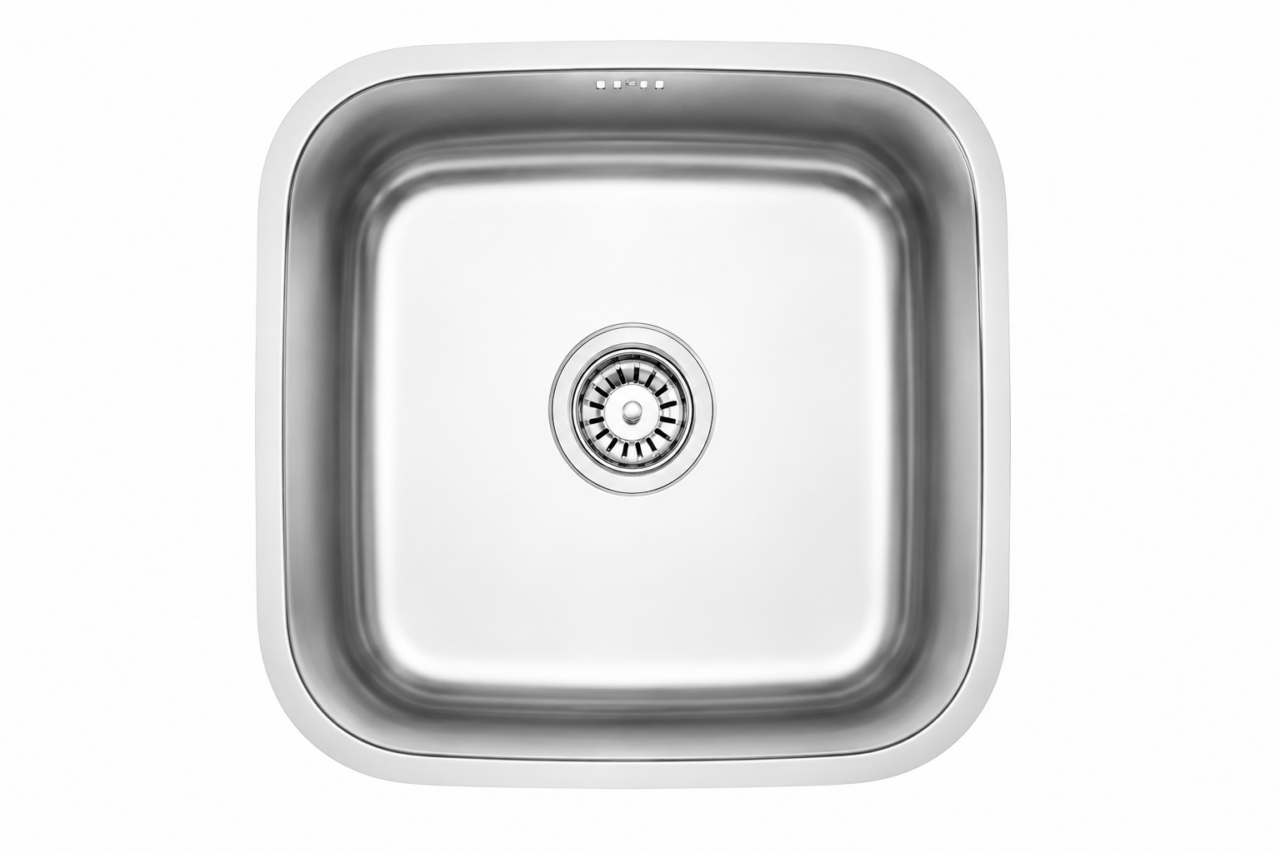

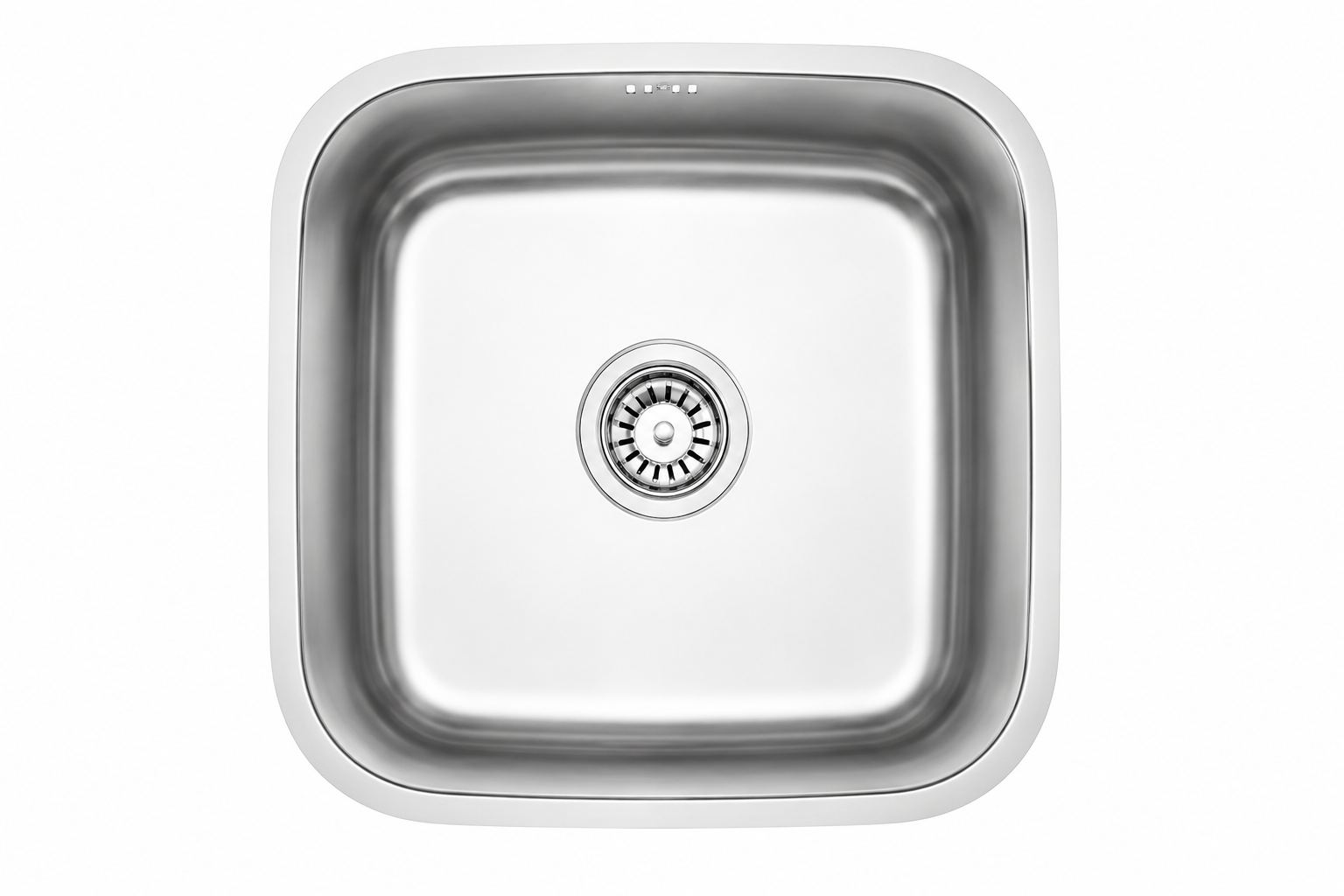

Model : DX52U
Installation Type : Undermount
Dimension : 476x411x160-180MM
Cut out size : 440x375MM
Bowl 1 Dimension : 440x375x160-180MM
Bowl 2 Dimension : –
Waste Outlet : 90MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Overflow Hole

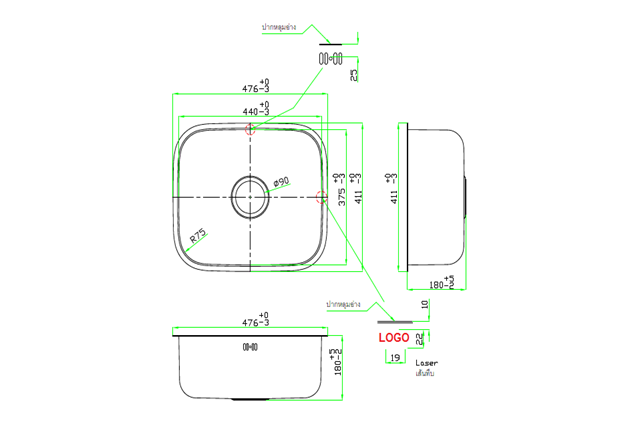

DRAWING
