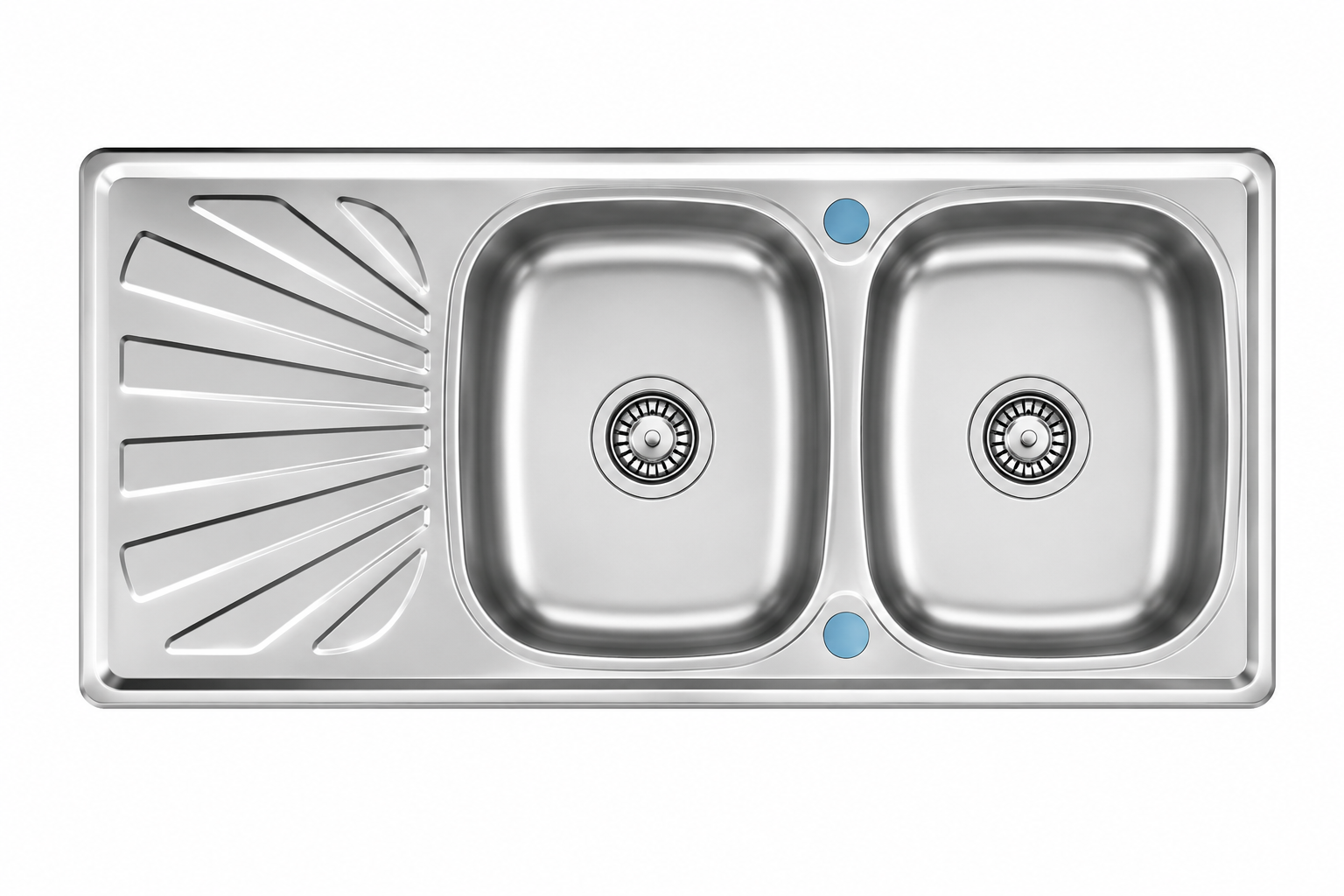

2 BOWL 1-DRAINER Model : DL200

Model : DL200
Installation Type: INSET
Dimension : 1200x500x150-190mm.
Cut out size : 1184x454mm.
Bowl 1 Dimension: 370x410x150-190mm.
Bowl 2 Dimension: 370x410x150-190mm.
Waste Outlet : 50/90/97/110 mm.
Material : SS AISI201/AISI304
Thickness : 0.5/0.6/0.7/0.8 mm.
Surface : Satin / Bright polishing
Other : Tap/No Tap Hole, Overflow Hole

DRAWING (SINK)
