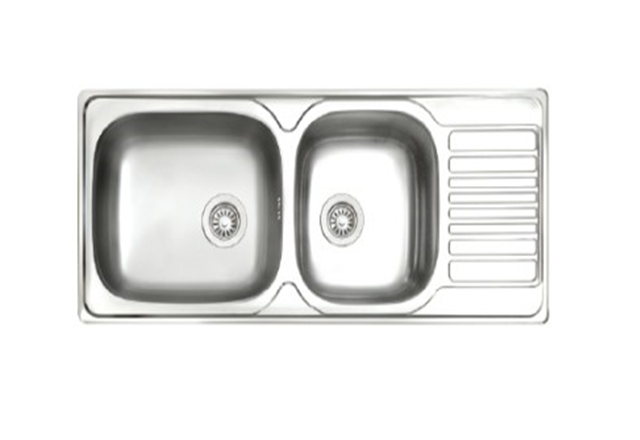

Model : XXL9
Installation Type : Inset
Dimension :1200x500x160-180MM
Cut out size : 1184x484MM
Bowl 1 Dimension : 475x405x160-180MM
Bowl 2 Dimension : 370x410x160-180MM
Waste Outlet : 90MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

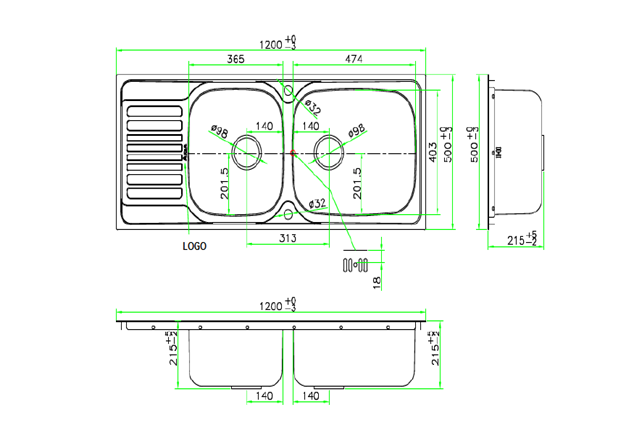

DRAWING
