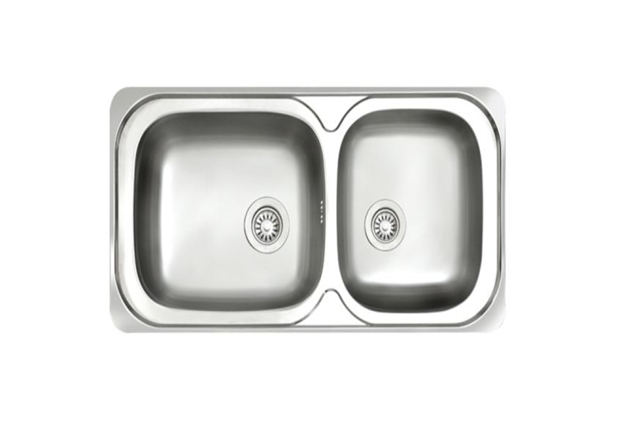

Model : XXL5
Installation Type : Inset
Dimension : 1000x500x160-220MM
Cut out size : 984x484MM
Bowl 1 Dimension : 474x405x160-220MM
Bowl 2 Dimension : 365x405x160-220MM
Waste Outlet : 90/98MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

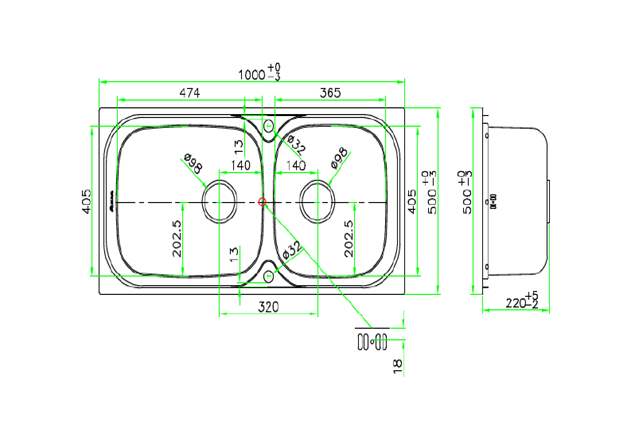

DRAWING
