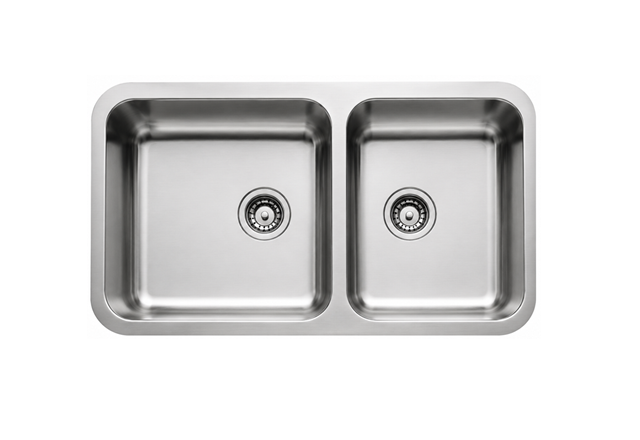

2-Bowl Undermount: DB850/460U

Model : DB850/460U
Installation Type : Undermount
Dimension : 850x460x195MM
Cut out size : –
Bowl 1 Dimension : 420x400x185MM
Bowl 2 Dimension : 335x400x185MM
Waste Outlet : 90/MM
Material : AISI304
Thickness : 0.8MM
Surface : Satin Polished
Other : Overflow Hole

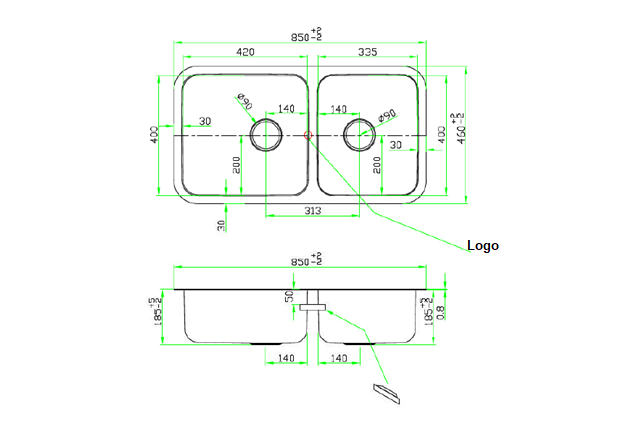

DRAWING
