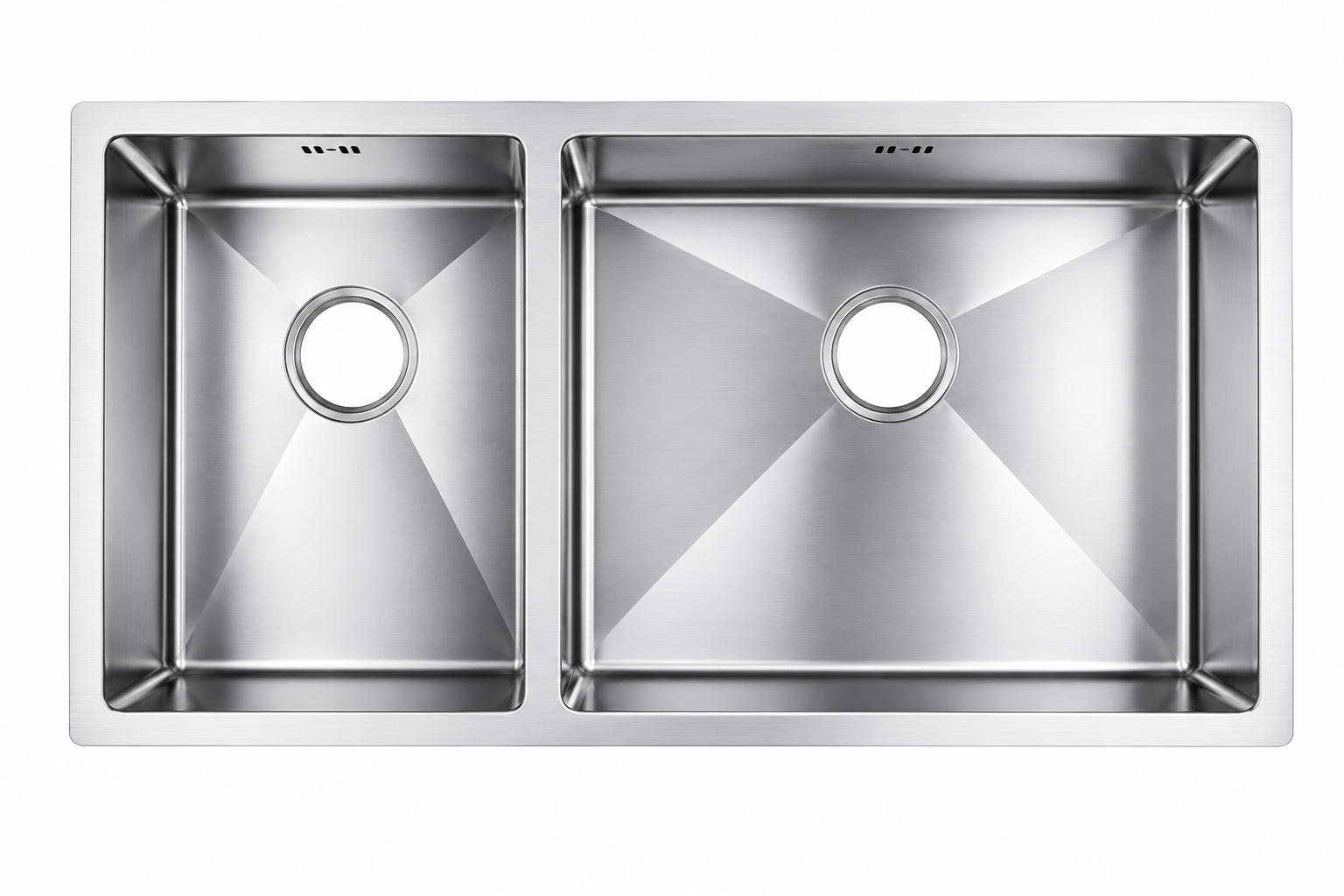

SINK – DB1000x400x220R10U (R10)

Model : DB1000x400x220R10U
Installation Type : Undermount
Dimension : 1000x400x220MM
Cut out size : 960x360MM
Bowl 1 Dimension : 360x370x220MM
Bowl 2 Dimension : 360x560x220MM
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 1.2MM
Surface : Hairline
Other : Overflow Hole

DRAWING (SINK)
