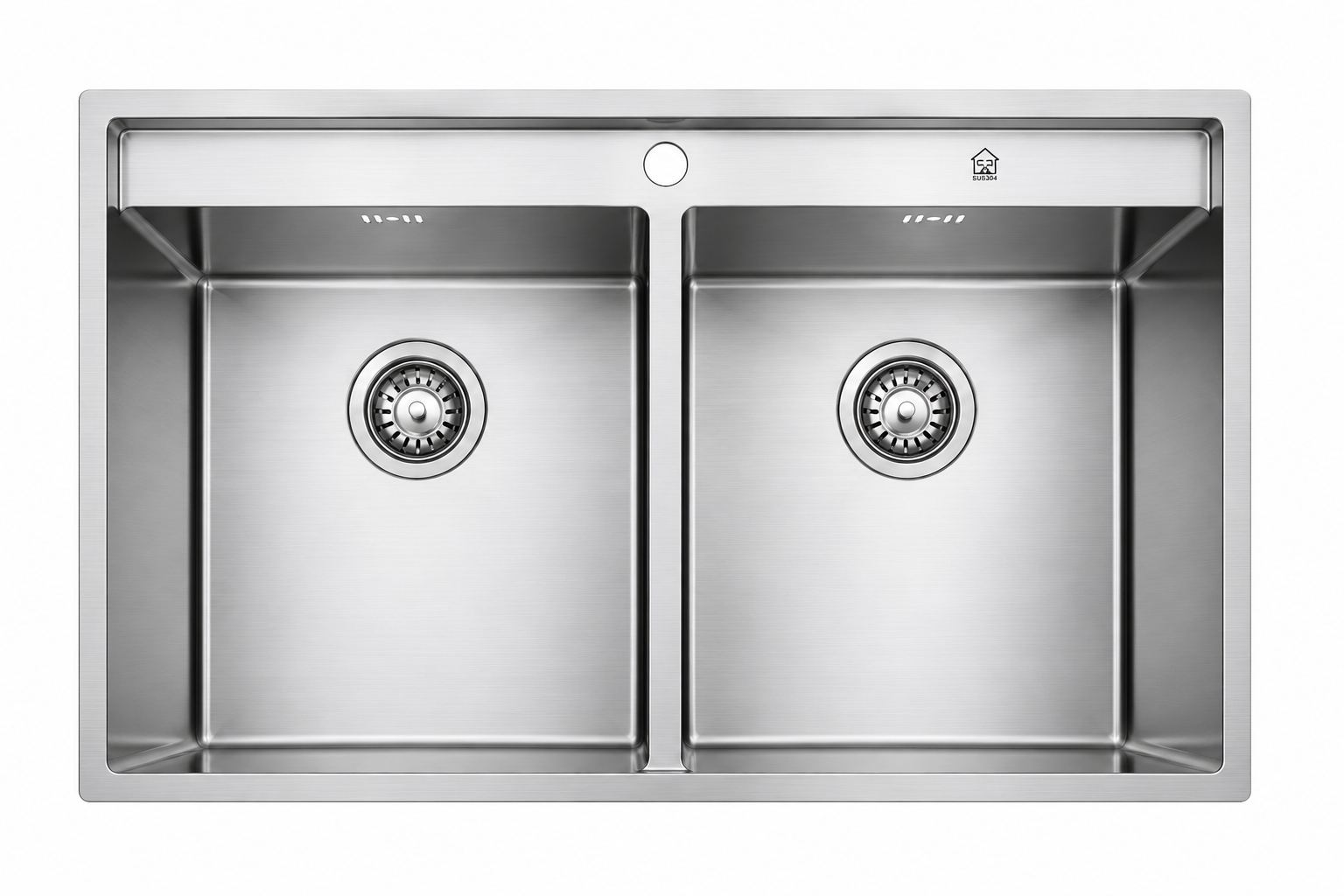

SINK – DL960R10

Model : DL960R10

Installation Type : Overmount
Dimension : 960x500x240MM
Cut out size : 944x484MM
Bowl 1 Dimension : 440x380x240MM
Bowl 2 Dimension : 440x380x240MM
Waste Outlet : 90/97/98/110/123MM
Material : SS AISI304
Thickness : 1.2MM, Top 3.0MM
Surface : Hairline
Other : Tap/No Tap Hole, Overflow Hole



DRAWING
