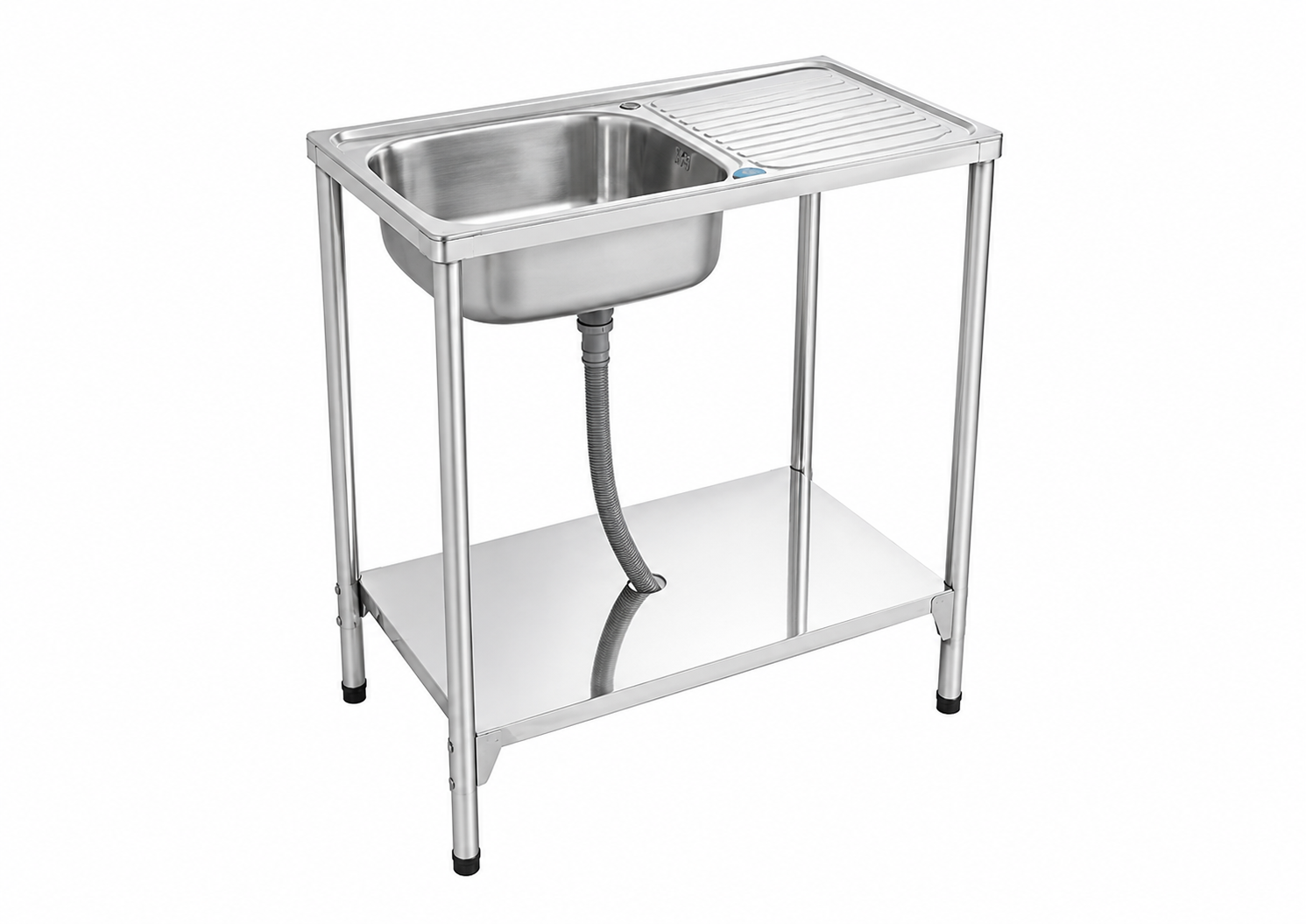

Model : PCF80
Installation Type : Inset
Dimension : 820x470x160-180MM
Cut out size : –
Bowl 1 Dimension : 410x390x160-180MM
Bowl 2 Dimension : –
Tray/Grate Dimension: 730x433x25MM
Waste Outlet : 90/97MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

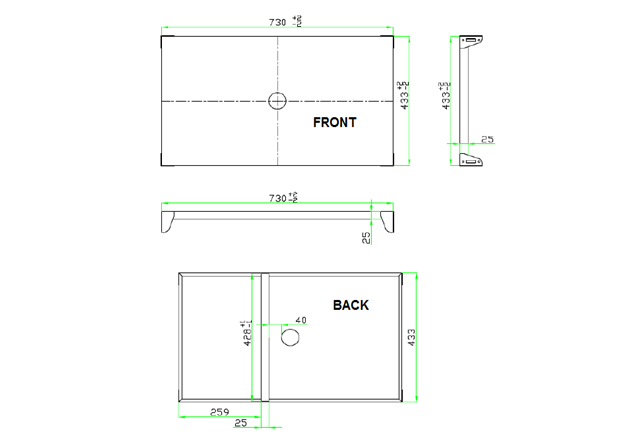

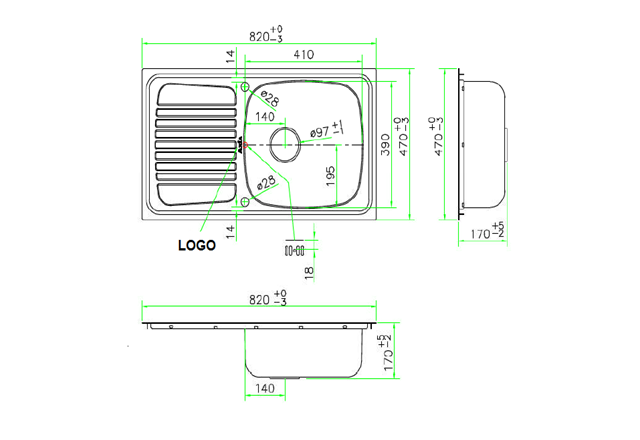

DRAWING
