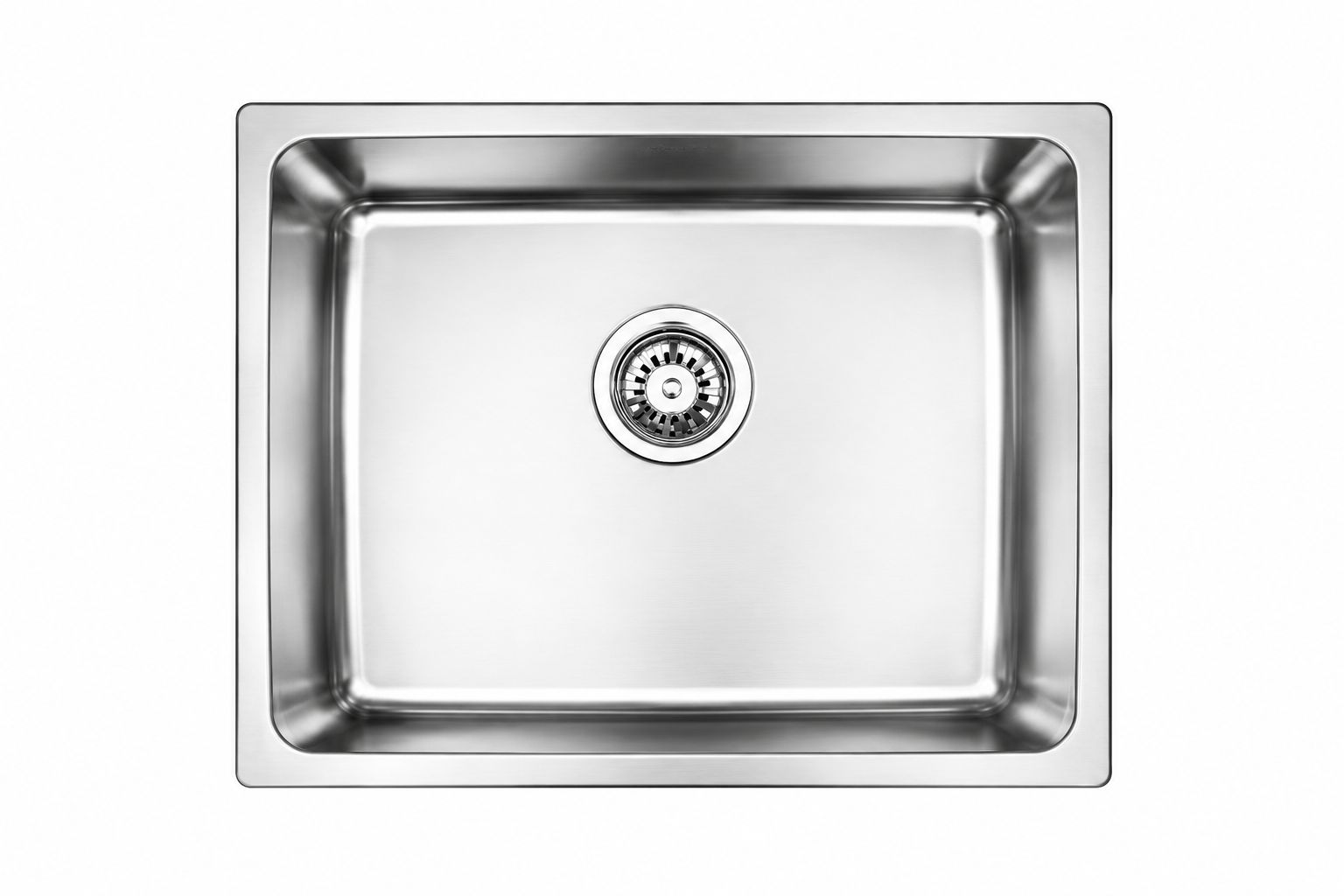

Model : SB50R25U
Installation Type : Undermount
Dimension : 540x440x180-220MM
Cut out size : –
Bowl 1 Dimension : 500x400x180-220MM
Bowl 2 Dimension : –
Waste Outlet : 90/97/110/123MM
Material : AISI304
Thickness : 0.8/1.0MM
Surface : Satin
Other : Overflow Hole & No Tap Hole

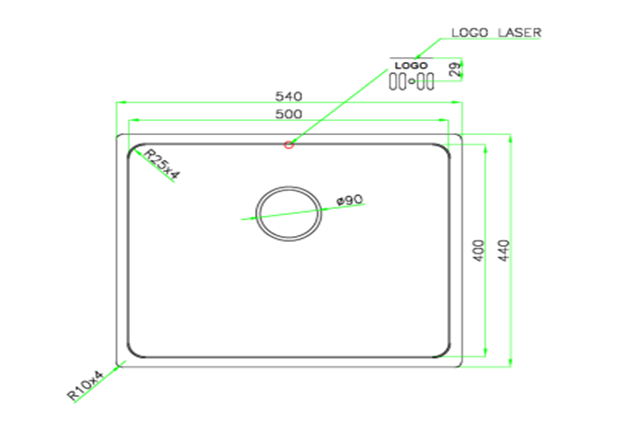

Drawing
