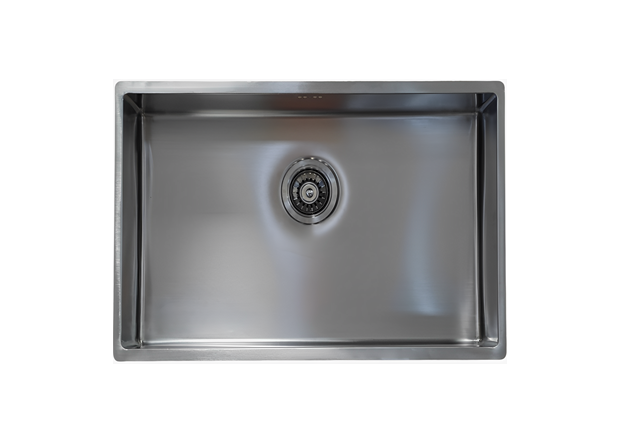

SINK – SB730x450x200U

Model : SB730x450x200U
Installation Type : Undermount
Dimension : 730x450x200MM
Cut out size : 700x410MM
Bowl 1 Dimension : 700x410x200MM
Bowl 2 Dimension : –
Waste Outlet : 90/97/98/110/123MM
Material : SS AISI304
Thickness : 1.2MM
Surface : Hairline
Other : Overflow Hole

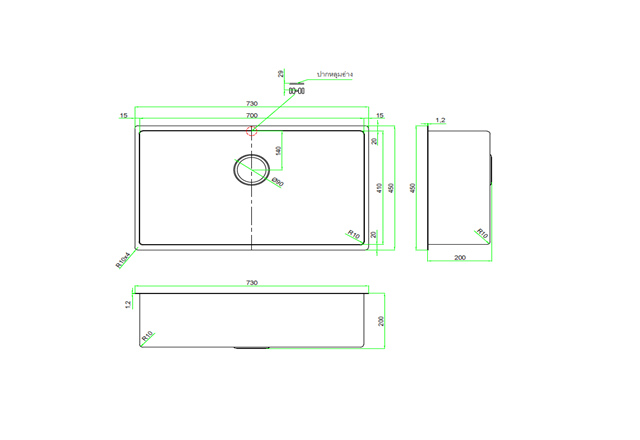

DRAWING
