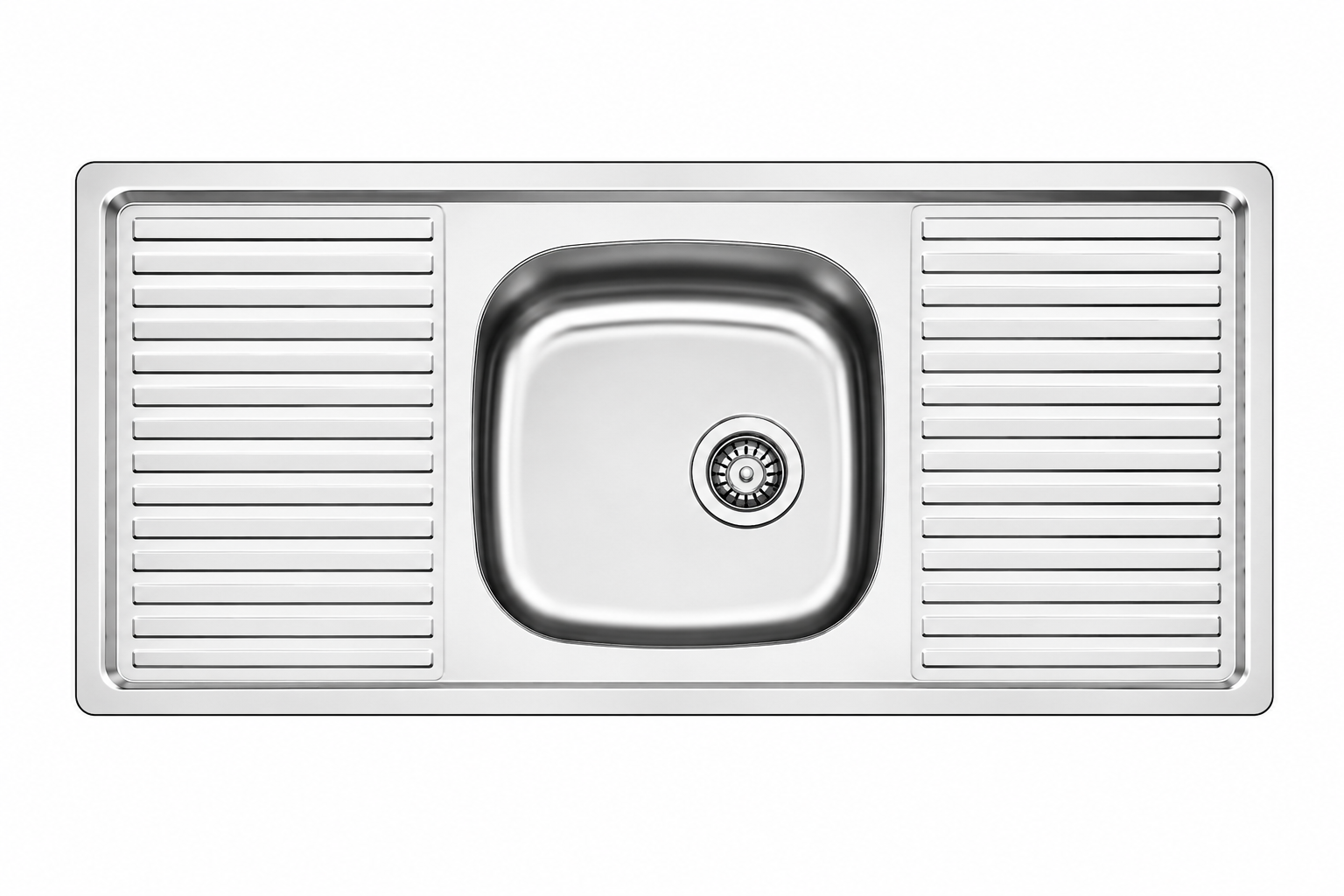

Model : 1009
Installation Type : Inset/Layon
Dimension : 1220x457x148MM
Cut out size : 1204x441MM (Inset Type)
Bowl 1 Dimension : 320X405X148MM
Bowl 2 Dimension : –
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.8MM
Surface : Bright Polished
Other : Tap/No Tap Hole, Overflow Hole

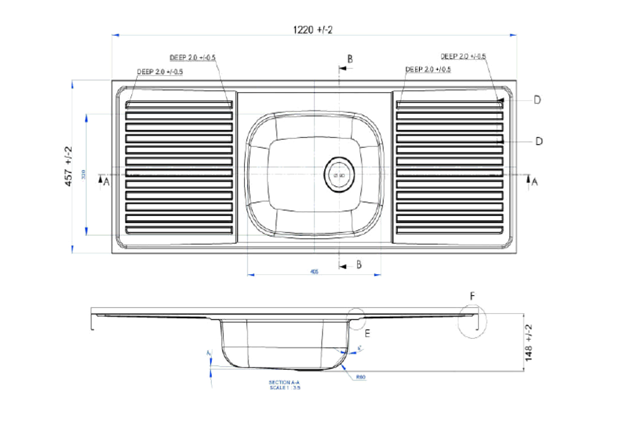

DRAWING
