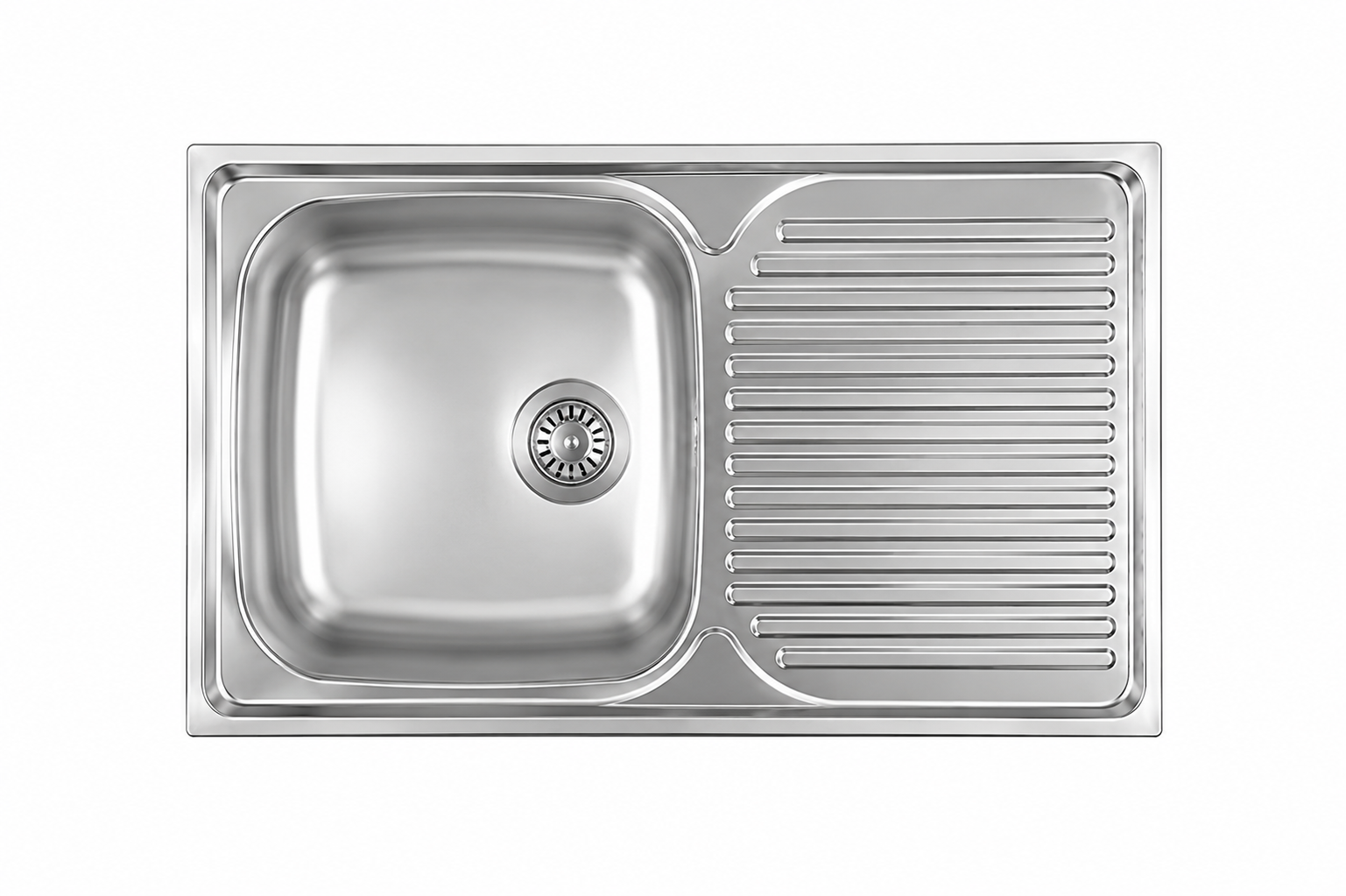

1 BOWL 1-DRAINER Model : DOX611 REV

Model : DOX611 REV
Installation Type : Inset
Dimension : 1000x500x160-180MM
Cut out size : 984x484MM
Bowl 1 Dimension : 475x405x160-180MM
Bowl 2 Dimension : –
Waste Outlet : 50/90/97/98/110MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

DRAWING (SINK)
