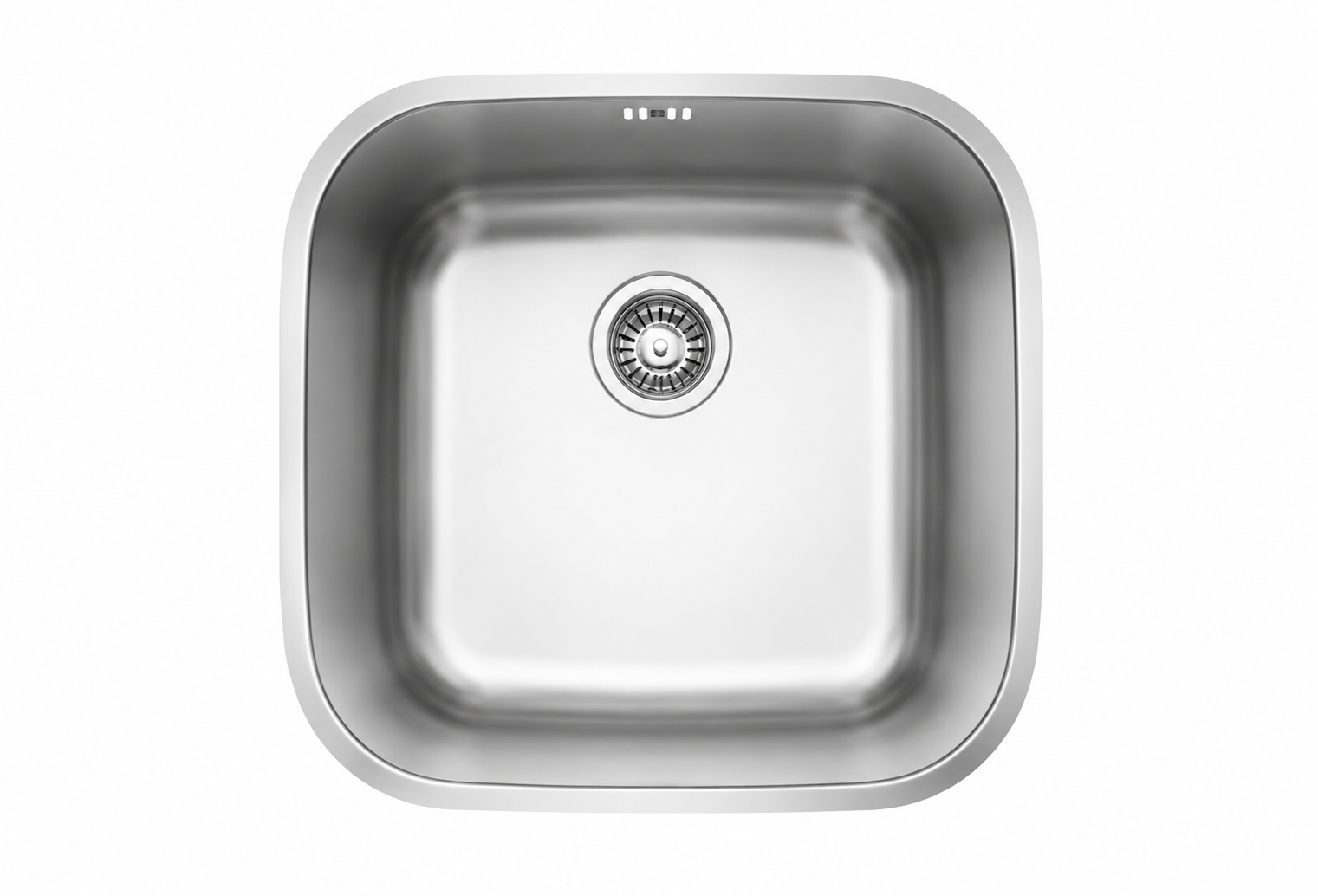

1 BOWL UNDERMOUNT Model : MU47

Model : MU47
Installation Type : Undermount
Dimension : 500x430x160-190MM
Cut out size : 484x414MM
Bowl 1 Dimension : 472x402x160-190MM
Bowl 2 Dimension : –
Waste Outlet : 90/98MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Overflow Hole

DRAWING (SINK)
