Model : DB868B
Installation Type : Layon
Dimension : 860x500x180MM
Cut out size : –
Bowl 1 Dimension : 365x405x180MM
Bowl 2 Dimension : 365x405x180MM
Waste Outlet : 50/90/97/98/110MM
Material : AISI201
Thickness : 0.6/0.7/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

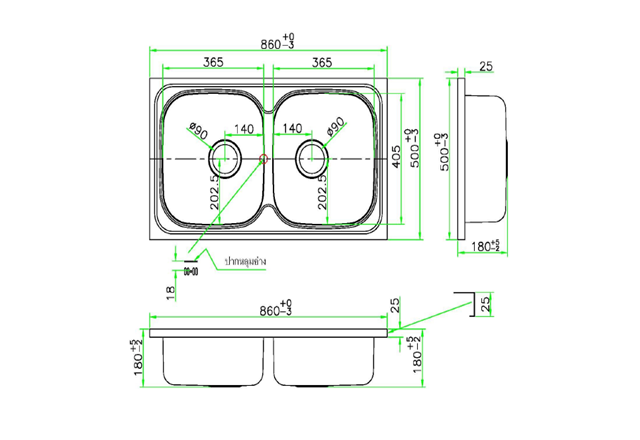

DRAWING
