Model : DX300
Installation Type: INSET
Dimension : 1200x500x165MM
Cut out size : –
Bowl 1 Dimension : 345x400x165MM
Bowl 2 Dimension : 345x400x165MM
Waste Outlet : 50/90/97/110 mm.
Material : SS AISI201/AISI304
Thickness : 0.5/0.6/0.8 mm.
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

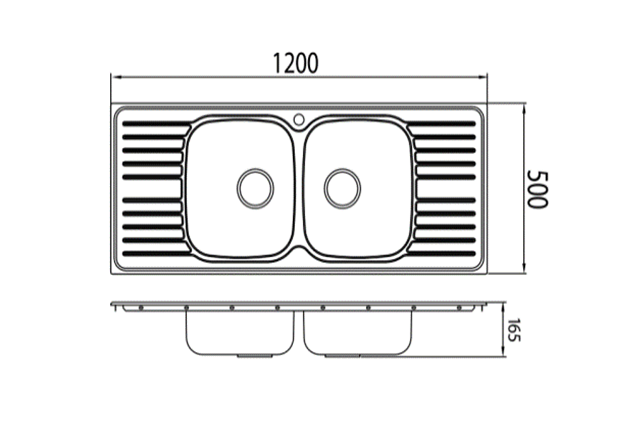

DRAWING (SINK)
