Model : PCF120
Installation Type : Inset
Dimension : 1200x500x160-180MM
Cut out size : –
Bowl 1 Dimension : 370x410x160-180MM
Bowl 2 Dimension : 370x410x160-180MM

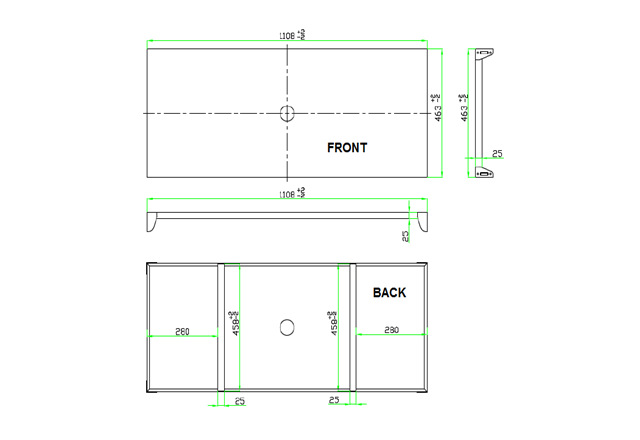

Tray/Grate Dimension: 1108x463x25MM
Waste Outlet : 90/97MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

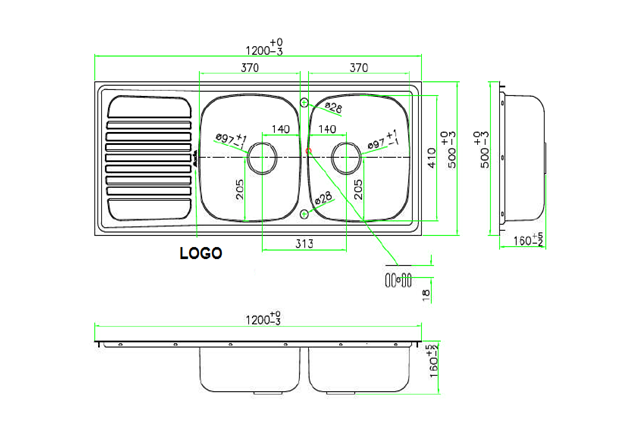

DRAWING
