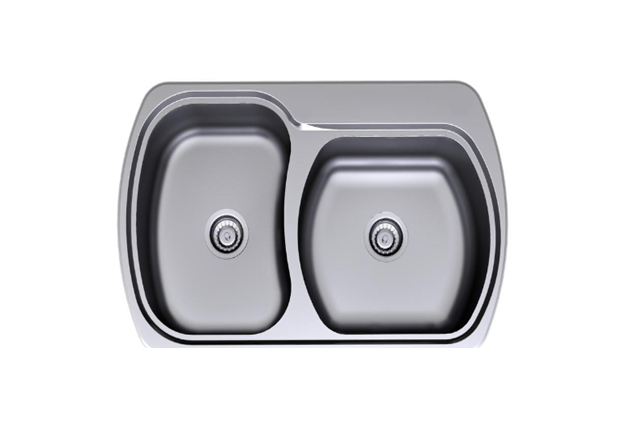

2 BOWL NO DRAINER Model : 8300

Model : 8300
Installation Type : Inset
Dimension : 900x560x228MM
Cut out size : 884x544MM
Bowl 1 Dimension : 340X470x228MM
Bowl 2 Dimension : 400x440x228MM
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 1.2MM
Surface : Bright Polished
Other : Tap/No Tap Hole, Overflow Hole

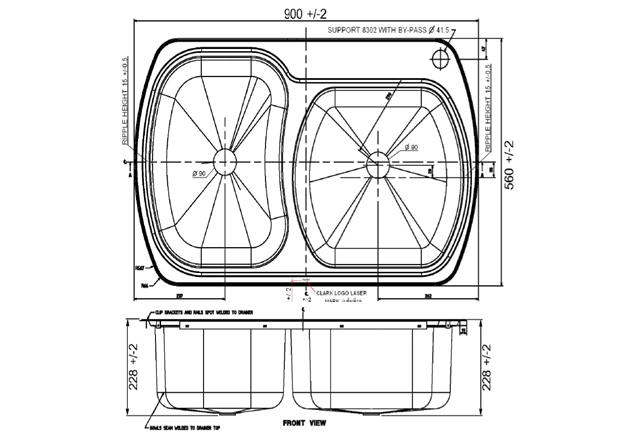

 DRAWING
