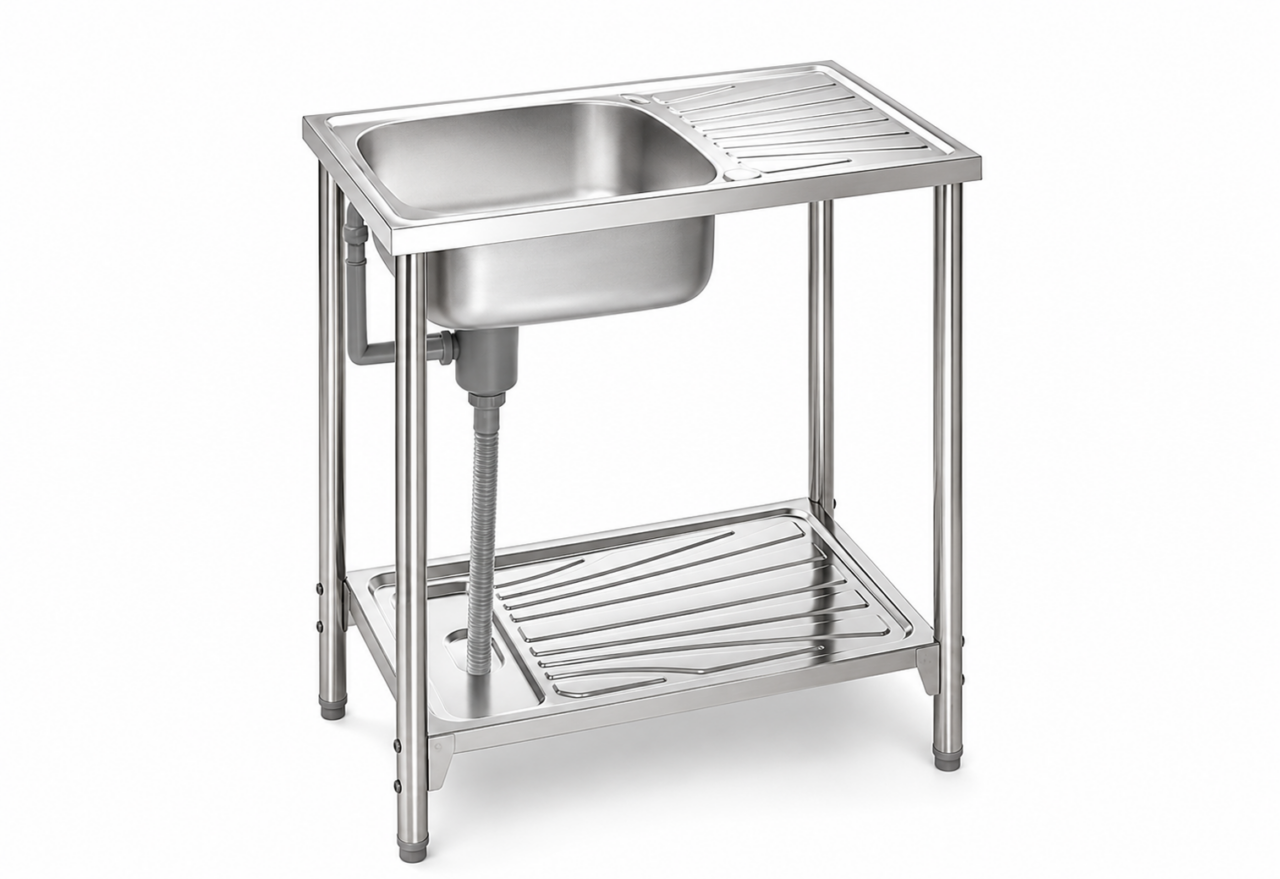

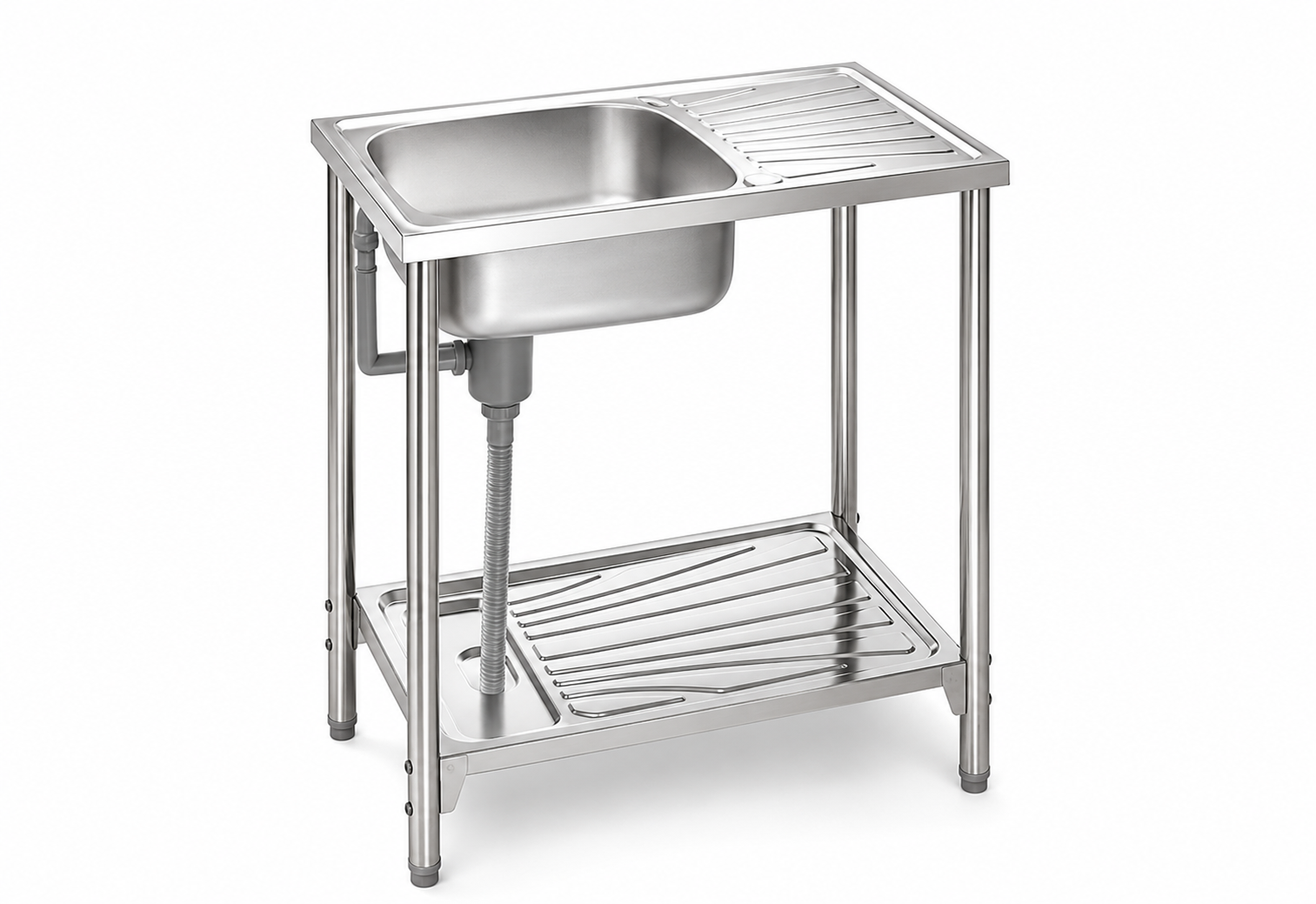

Model : PS75
Installation Type : Stand & Tray/Grate
Dimension :750x430x780MM
Cut out size : –
Bowl 1 Dimension : 750x430x160-180MM
Bowl 2 Dimension : –

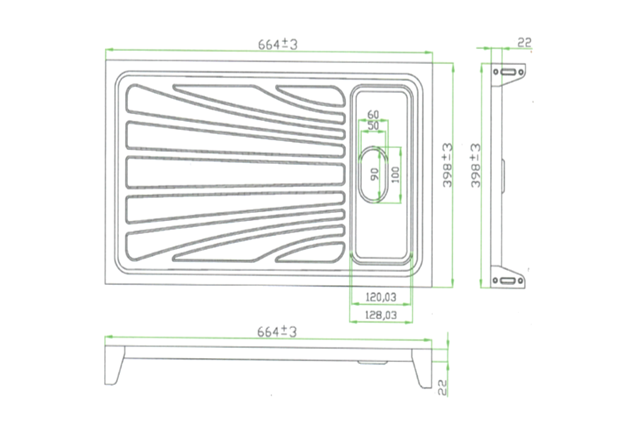

Tray/Grate Dimension: 664x398x22MM
Waste Outlet : 90/98/110/123MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

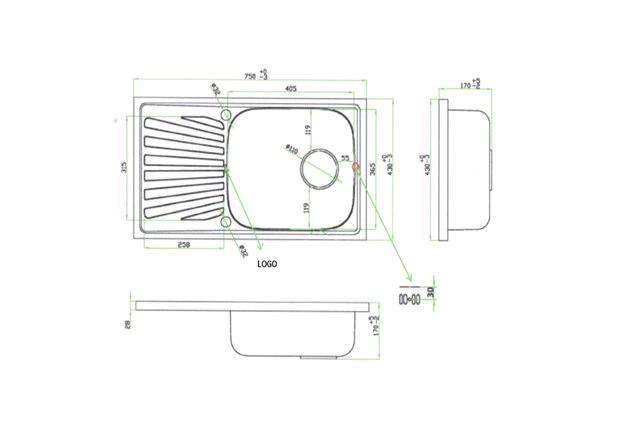

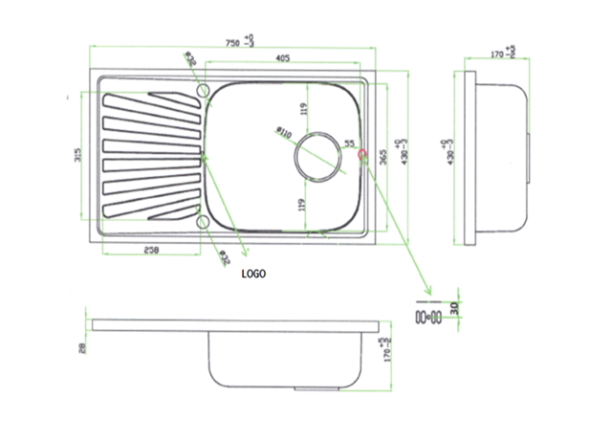

DRAWING
