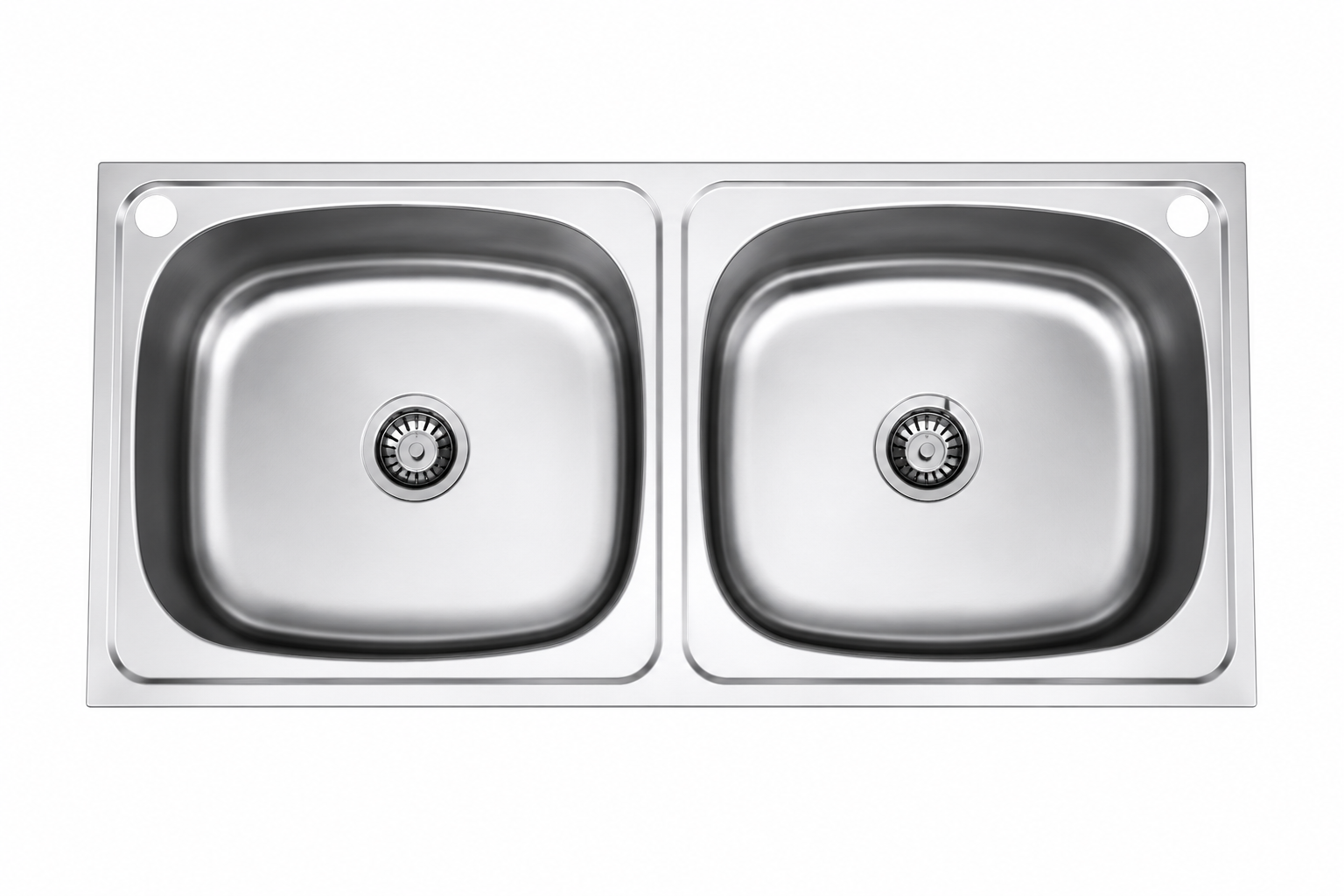

2 BOWL NO DRAINER Model : 8710

Model : 8710
Installation Type : Inset
Dimension : 1248x470x270MM
Cut out size : –
Bowl 1 Dimension : 550x391x270MM
Bowl 2 Dimension : 550x391x270MM
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.8MM
Surface : Satin Polished
Other : Taphole/Overflow Hole

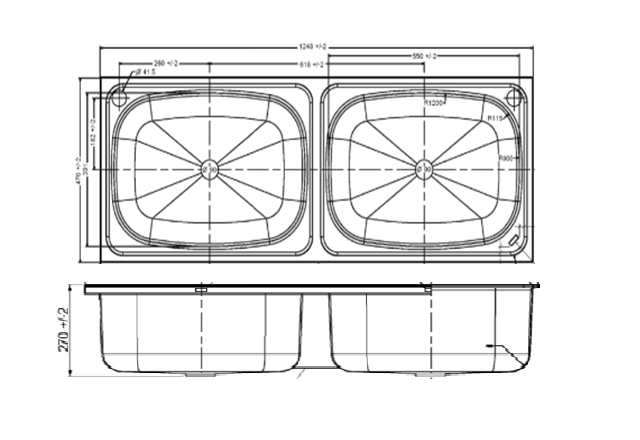

DRAWING
