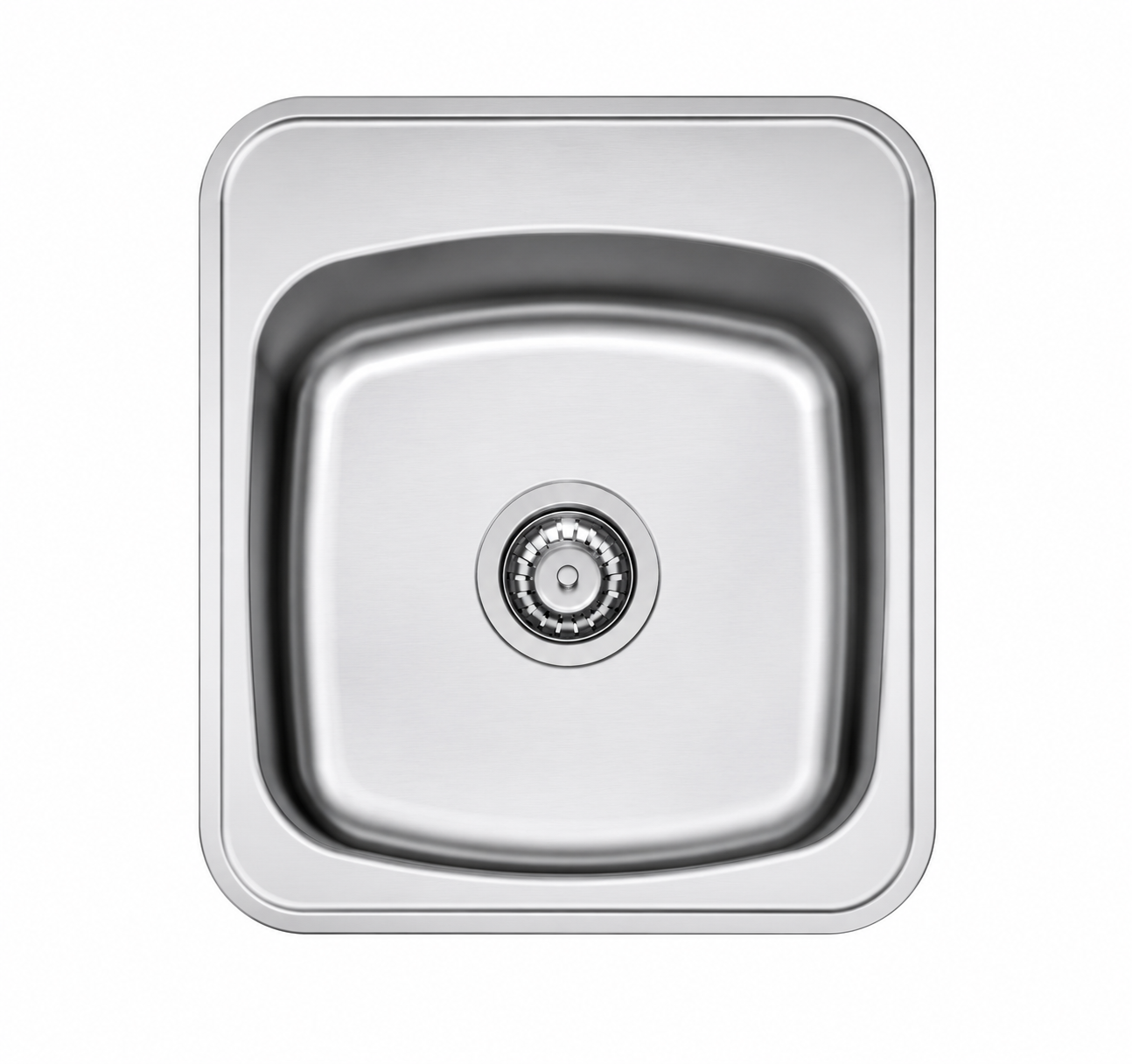

1 BOWL INSET/LAYON Model : 4004

Model : 4004
Installation Type : Inset
Dimension : 378x380x147MM
Cut out size : 362x364MM
Bowl 1 Dimension : 330X280x147MM
Bowl 2 Dimension : –
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.8MM
Surface : Bright Polished
Other : Tap/No Tap Hole, Overflow Hole

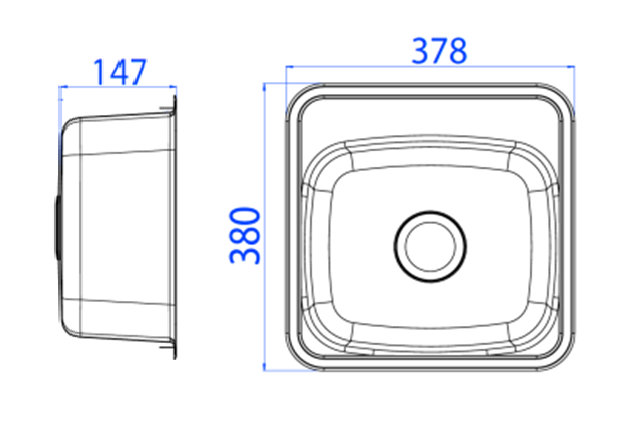

DRAWING
