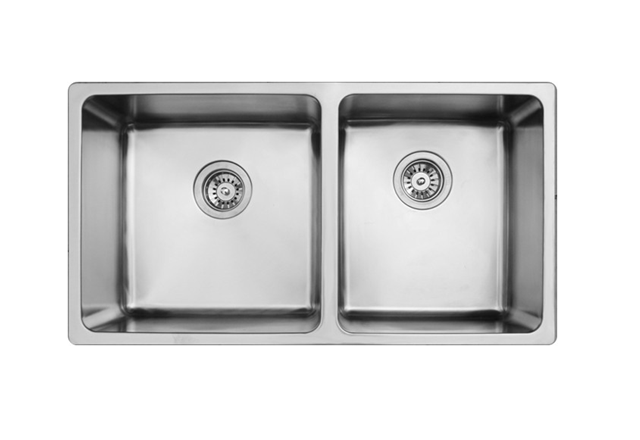

Sink – Model : DB810R25U

Model : DB810R25U
Installation Type : Undermount
Dimension : 810x440x200-220MM
Cut out size : –
Bowl 1 Dimension : 400x400x200-220MM
Bowl 2 Dimension : 340x400x200-220MM
Waste Outlet : 90/97/110/123MM
Material : AISI304
Thickness : 1.0MM
Surface : Satin
Other : Overflow Hole & No Tap Hole

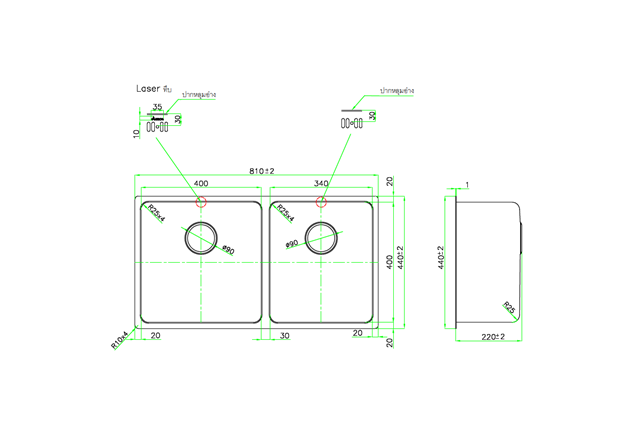

Drawing
