Model : DX48
Installation Type : Inset
Dimension : 480x435x160-180MM
Cut out size : 464x419MM
Bowl 1 Dimension : 405x365x160-180MM
Bowl 2 Dimension : –
Waste Outlet : 90MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

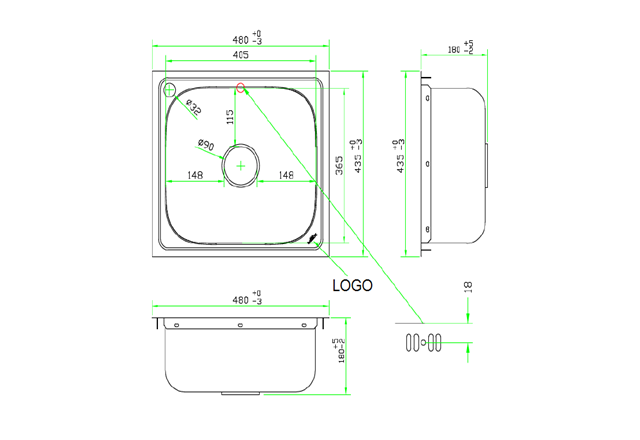

DRAWING
