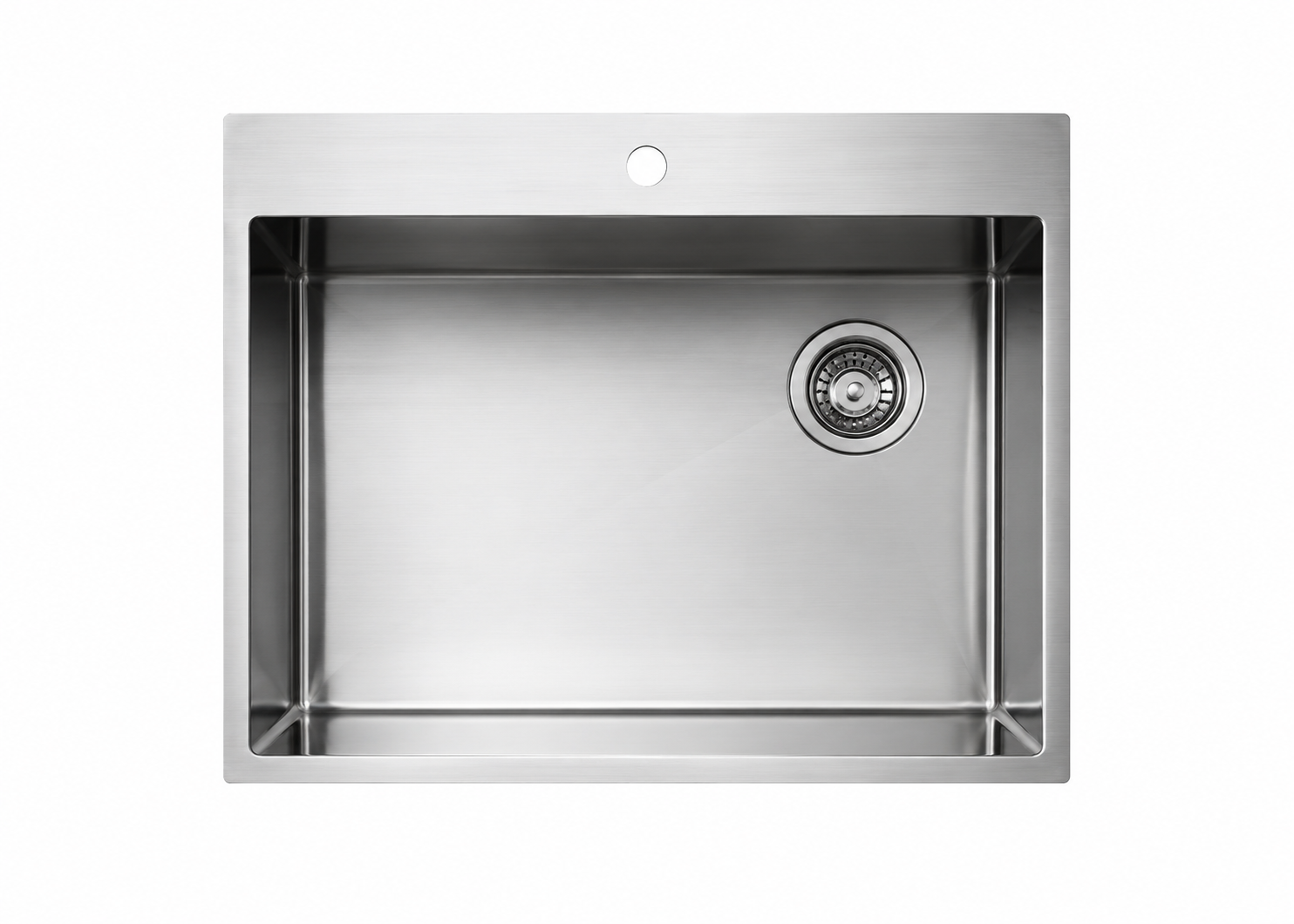

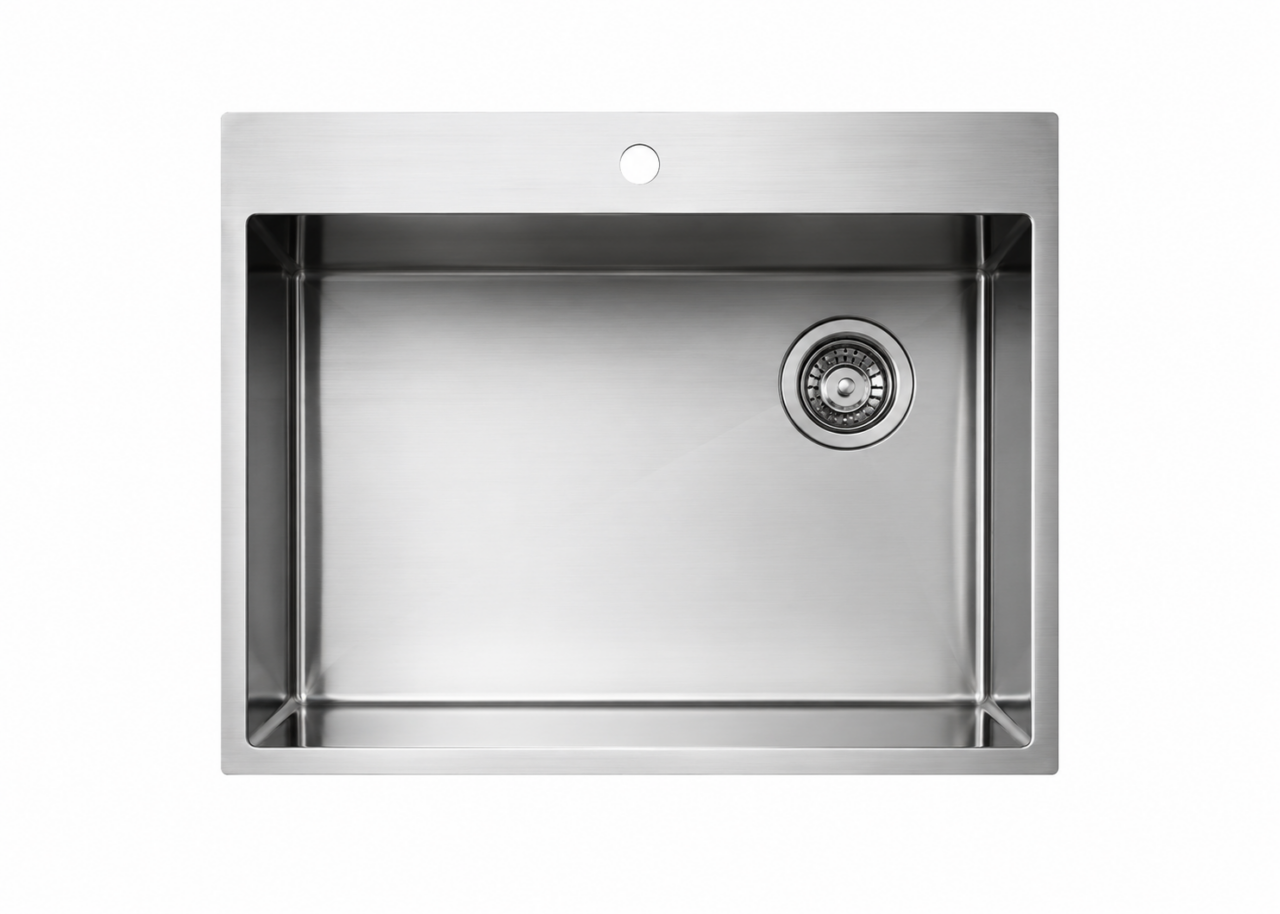

Model : SB838X559x230R10U
Installation Type : Overmount
Dimension : 838x559x230MM
Cut out size : 822x543MM
Bowl 1 Dimension :788x444x230MM
Bowl 2 Dimension : –
Waste Outlet :90/97/98MM
Material : SS AISI304
Thickness : 1.2MM, Top 3.0MM
Surface : Hairline
Other : Tap/No Tap Hole, Overflow Hole

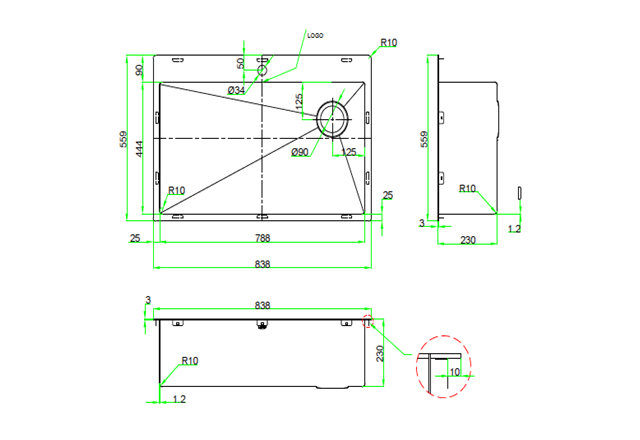

DRAWING
