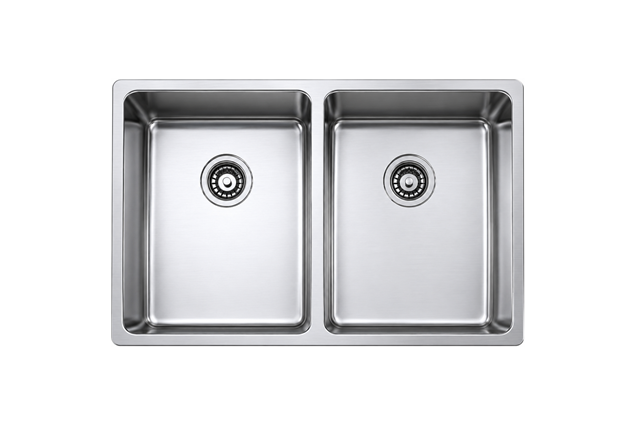

SINK – DB390X390R25U

Model : DB390X390R25U
Installation Type : Undermount
Dimension : 850x450x190MM
Cut out size : 810x410MM
Bowl 1 Dimension : 390x410x190MM
Bowl 2 Dimension : 390x410x190MM
Waste Outlet : 90MM
Material : SS AISI304
Thickness : 0.8MM
Surface : Satin
Other : Overflow Hole

DRAWING (SINK)
