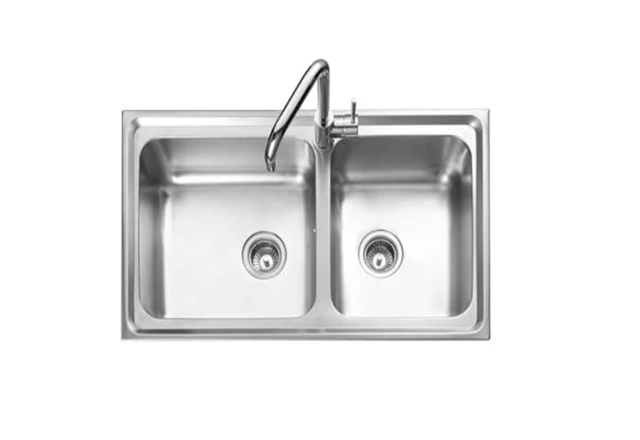

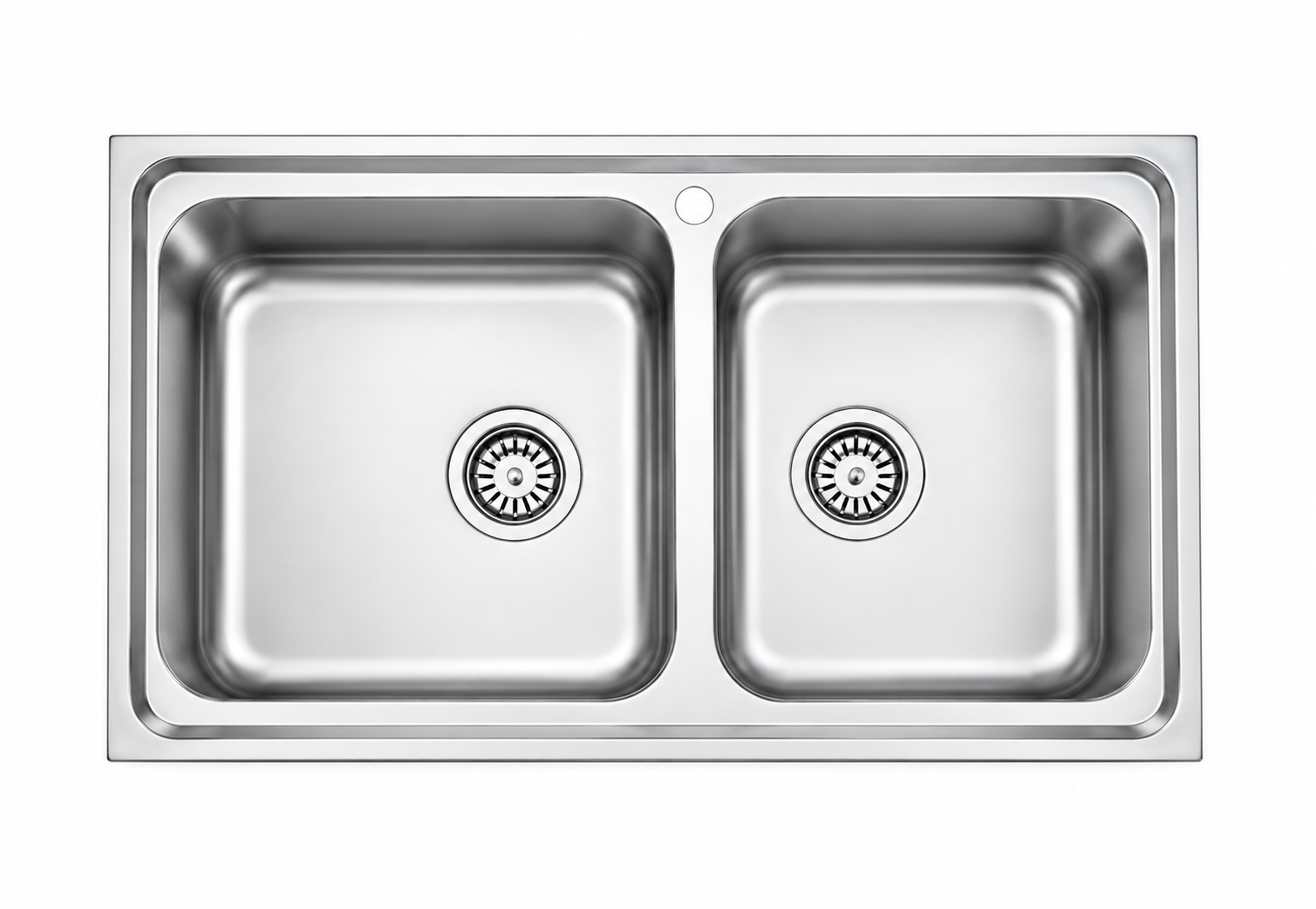

2 BOWL NO DRAINER Model : DLS86

Model : DLS86
Installation Type : Inset
Dimension : 860x500x160-180MM
Cut out size : 844x484MM
Bowl 1 Dimension : 415x395x160-180MM
Bowl 2 Dimension : 330x395x160-180MM
Waste Outlet : 90MM/98MM
Material : SS AISI201 or AISI304
Thickness : 0.5/0.6/0.8MM
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

DRAWING (SINK)
