Model : K605
Installation Type: INSET/LAYON
Dimension : 600x550x160-180mm.
Cut out size : 584x484mm.
Bowl 1 Dimension : 550x405x160-180mm.
Bowl 2 Dimension : –
Waste Outlet : 50/90/97/110/152 mm.
Material : SS AISI201/AISI304
Thickness : 0.5/0.6/0.8 mm.
Surface : Satin
Other : Tap/No Tap Hole, Overflow Hole

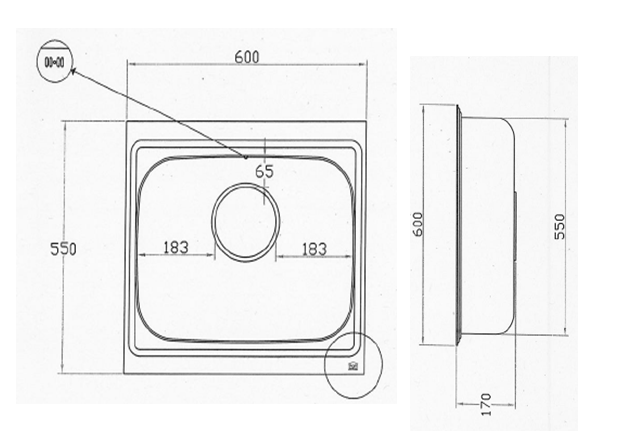

DRAWING
