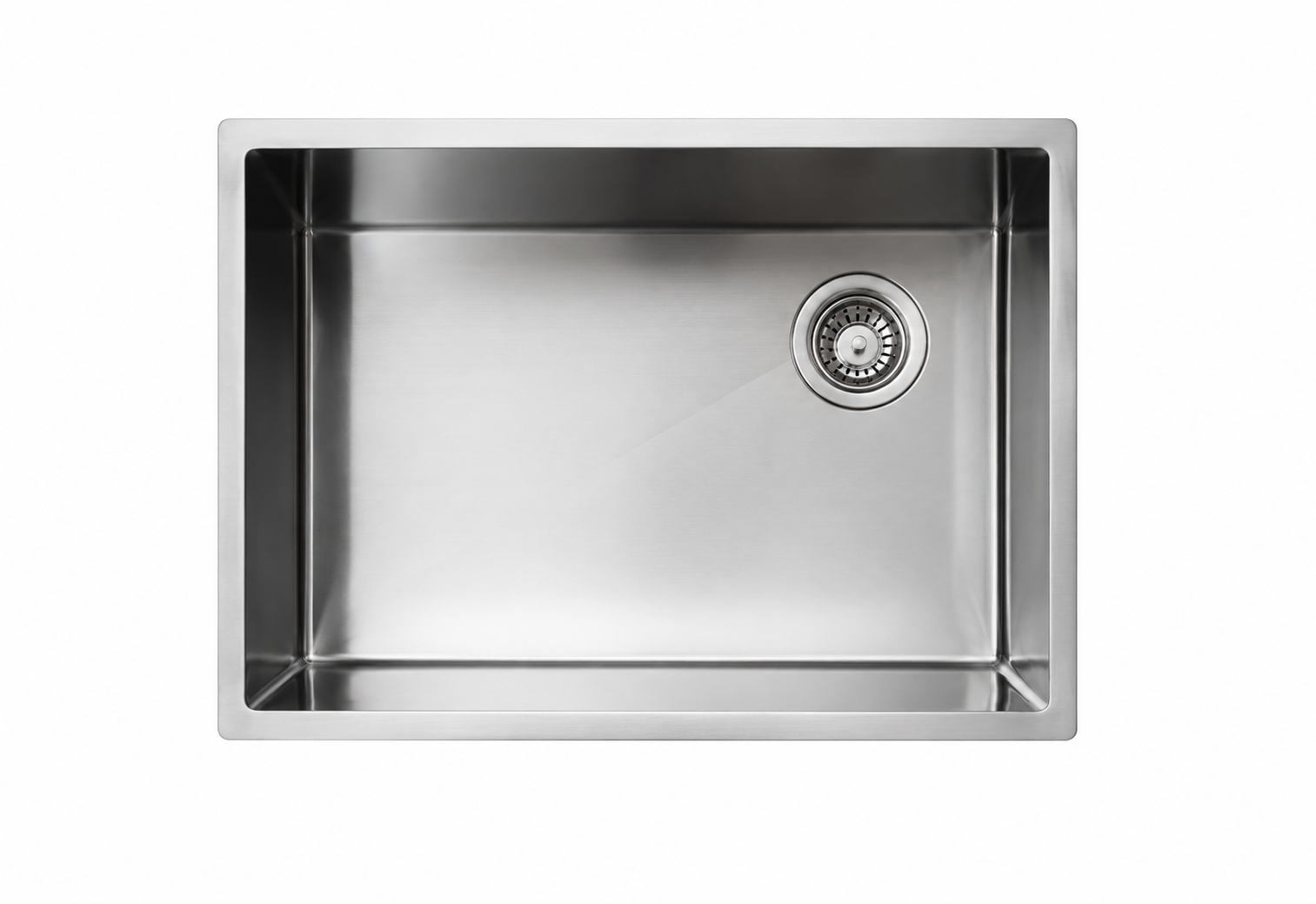

Model : SB813X483x230R10U
Installation Type : Undermount
Dimension : 813x483x230MM
Cut out size : 763x433MM
Bowl 1 Dimension : 763x433x230MM
Bowl 2 Dimension : –
Waste Outlet : 90/97/98MM
Material : SS AISI304
Thickness : 1.2MM, Top 3.0MM
Surface : Hairline
Other : Overflow Hole

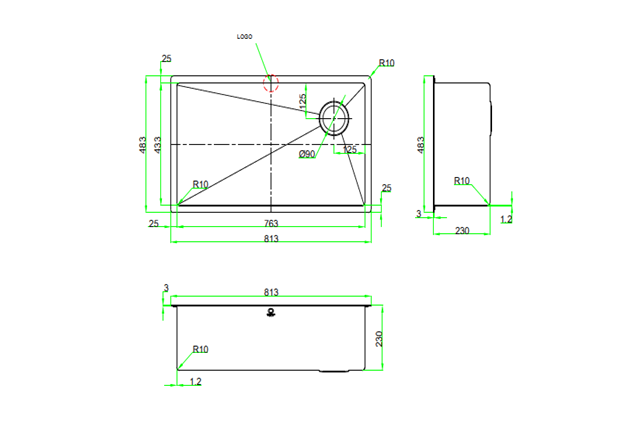

DRAWING
